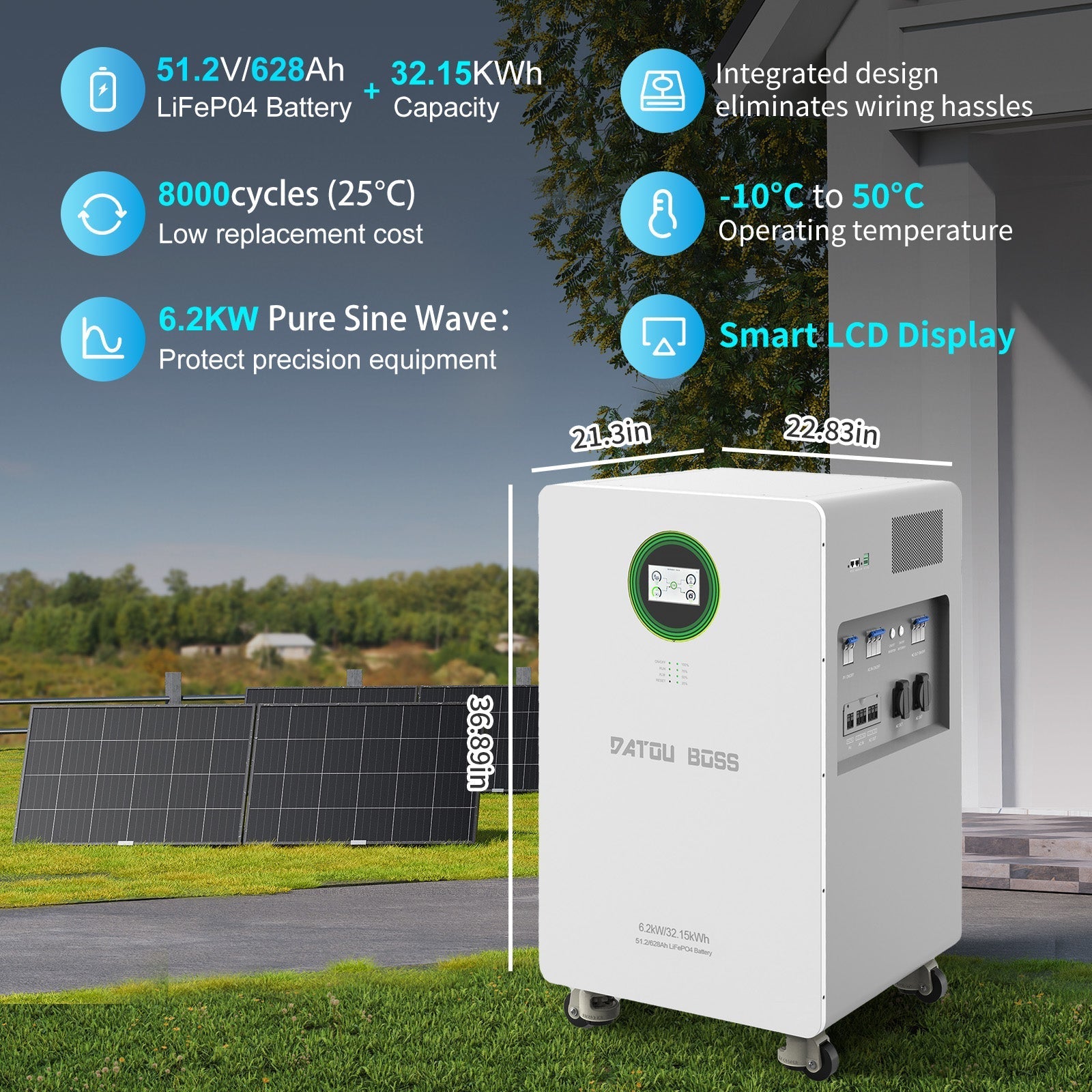

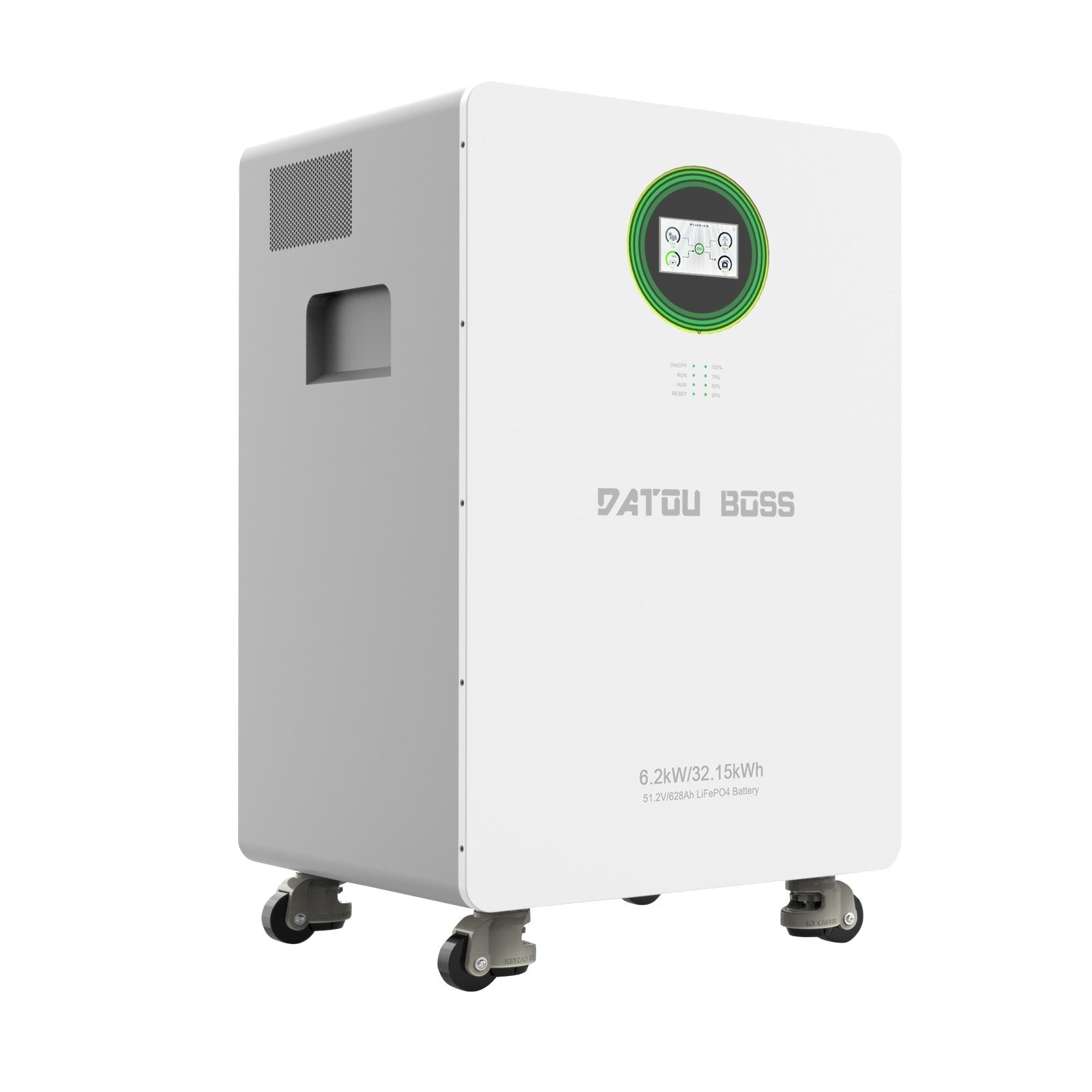

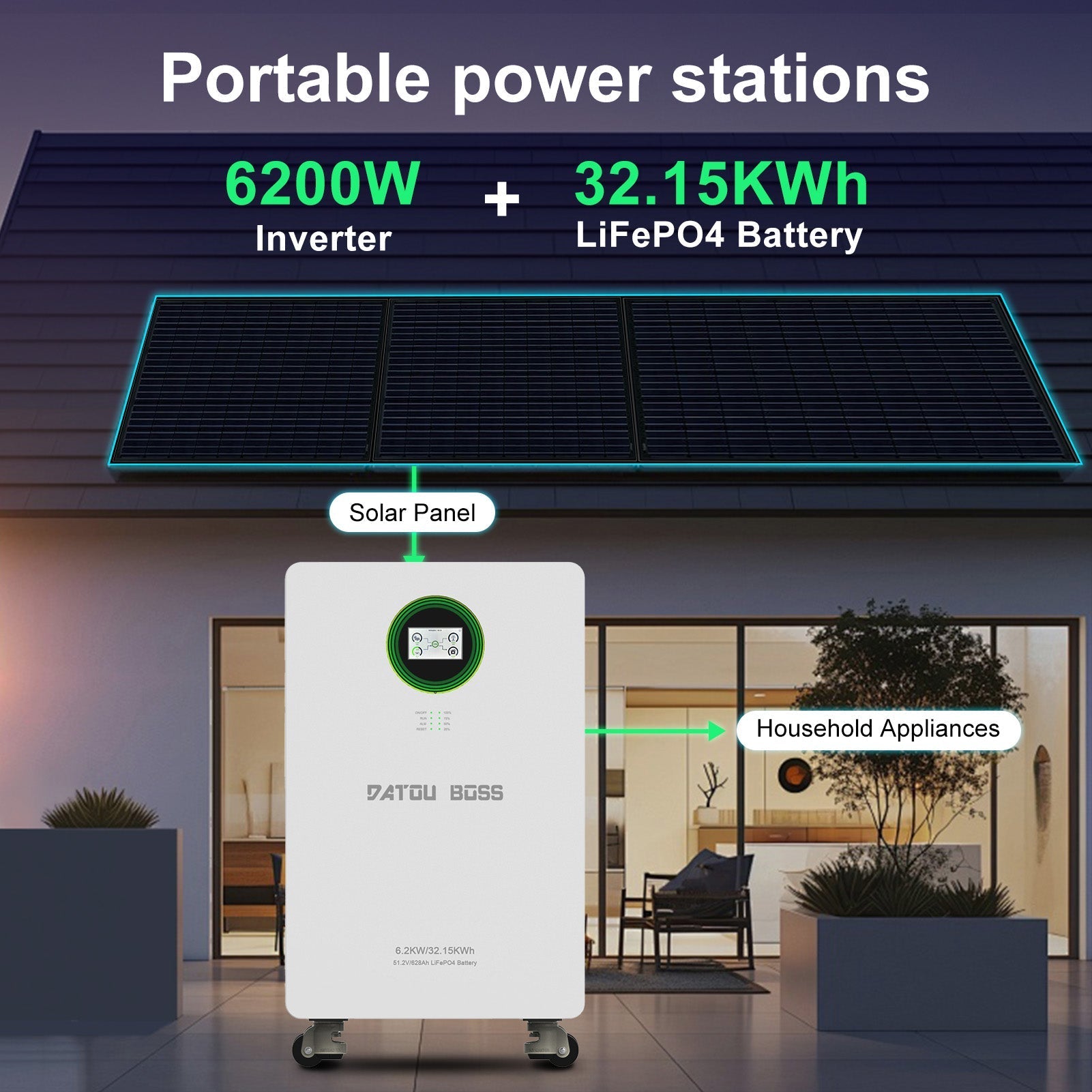

DATOUBOSS 48V 6200W Hybrid-Wechselrichter + 628Ah LiFePO4-Akku, tragbare Stromversorgung mit LCD-Touchscreen, abnehmbarem Gehäuse und Rädern, geeignet…
Angebotspreis
€2.698,95
Regulärer Preis
€6.939,41
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS 48V 6200W Hybrid-Wechselrichter + 628Ah LiFePO4-Akku, tragbare Stromversorgung mit LCD-Touchscreen, abnehmbarem Gehäuse und Rädern, geeignet für Solarenergiespeichersysteme mit hoher Kapazität/Wohnmobile/Heimenergiespeichersysteme
Angebotspreis
€2.698,95
Regulärer Preis
€6.939,41
| Category | Details |
|---|---|
| Product Model | JC-6232 |

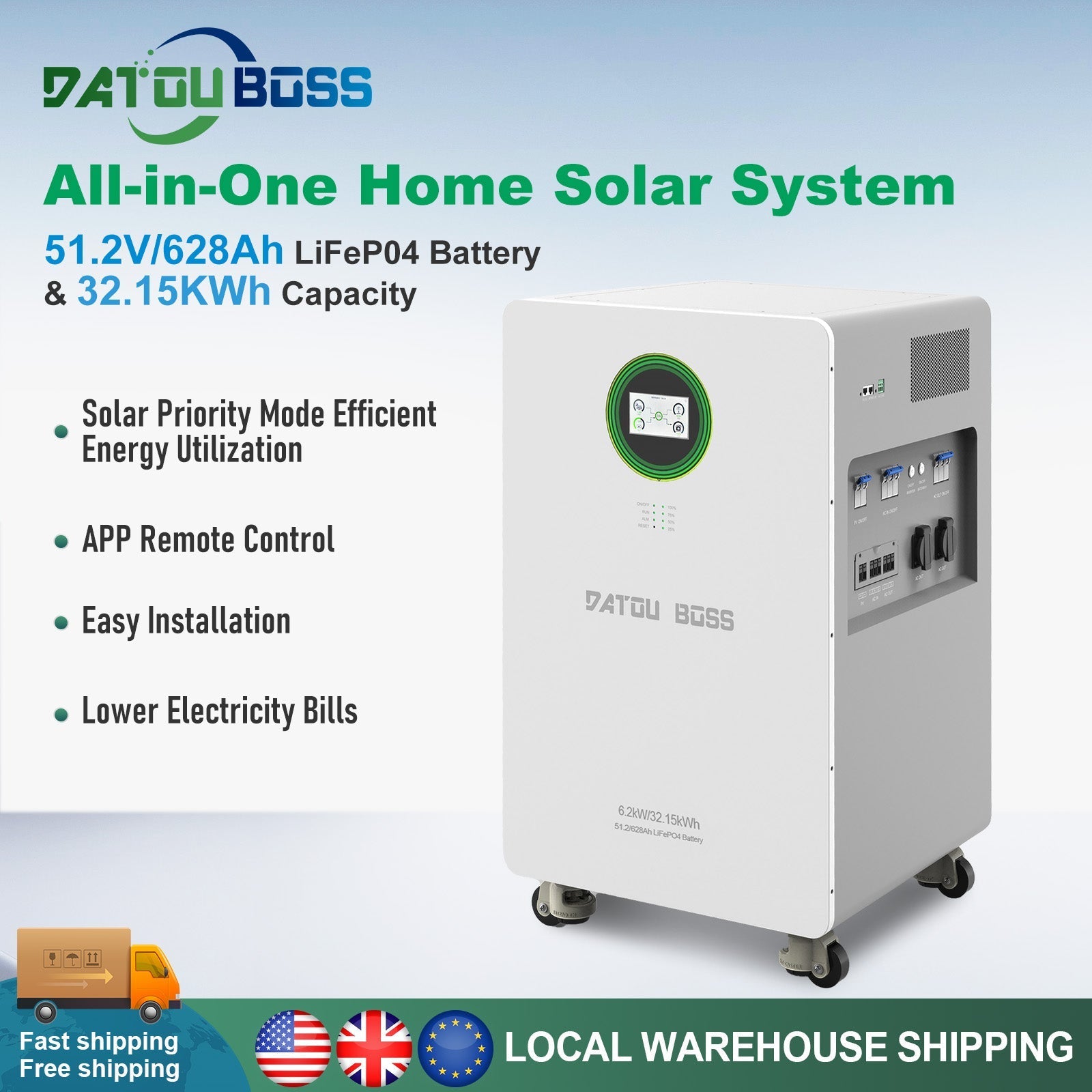

| Product Type | All-In-One Home Energy Storage |
| Core Integration Configuration | 6.2kW Inverter + 32.15kWh LiFePO4 Battery |
| User Interface | LCD Display + LED Status Indicator |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2 V |
| Rated Capacity | 628Ah |
| Rated Energy | 32.15 kWh |
| Cycle Life (25°C, 70% SOH) | 8000 cycles |
| Cycle Life (45°C, 70% SOH) | 3000 cycles |
| Charging Mode | MPPT |
| Max PV Input Power | 8500 W |
| MPPT Tracking Voltage Range | 60–500 Vdc |
| Optimal Operating Voltage | 300–400 Vdc |
| Max PV Input Voltage | 500 Vdc |
| Max PV Input Current | 27 A |
| Max PV Charging Current | 120 A |
| Input Format | L + N + PE |
| Rated Input Voltage | 220/230/240 VAC |
| Input Voltage Range (Normal Mode) | 90–280 VAC ±3V |
| Input Voltage Range (UPS Mode) | 170–280 VAC ±3V |
| Frequency Range | 50Hz/60Hz (Auto-select) |
| Max AC Charging Current | 100 A |
| System Max Total Charging Current | 120 A |
| Rated Output Power (Battery Inverter) | 6200 W |
| Rated Output Power (PV Inverter) | 6500 W |
| Peak Power | 12400 VA |
| Output Voltage | 220/230/240 VAC ± 5% |
| Output Frequency | 50/60 Hz ± 0.1% |
| Output Waveform | Pure Sine Wave |
| Switch Time (Computer Devices) | 10 ms |
| Switch Time (Home Appliances) | 20 ms |
| Overload Capacity (Battery Mode) | 105%~150% Load: 11s, 150%~200% Load: 2s, >200% Load: 400ms |
| Dimensions (L × W × H) | 550 × 541 × 928 mm |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Operating Humidity | 20%–95% (Non-condensing) |
| Operating Altitude | Up to 4000m (derating above 1000m, per IEC62040) |
| Noise Level | <50 dB |
| Display Information | Operating mode, load status, input/output parameters, energy flow direction |
| Indicators | Power, operation, alarm, battery status |
| Communication Interface | BMS/485 (Supports external connections) |
