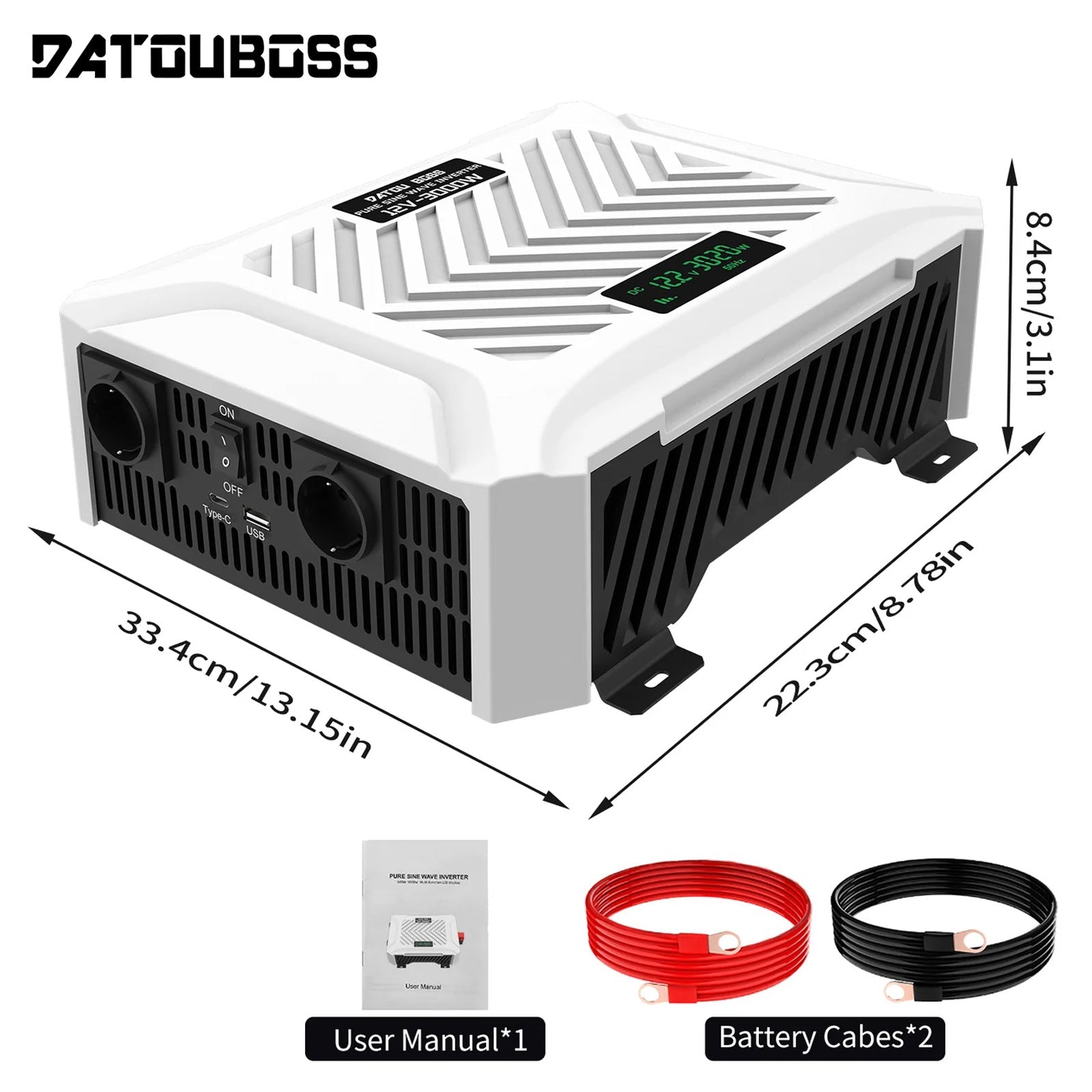

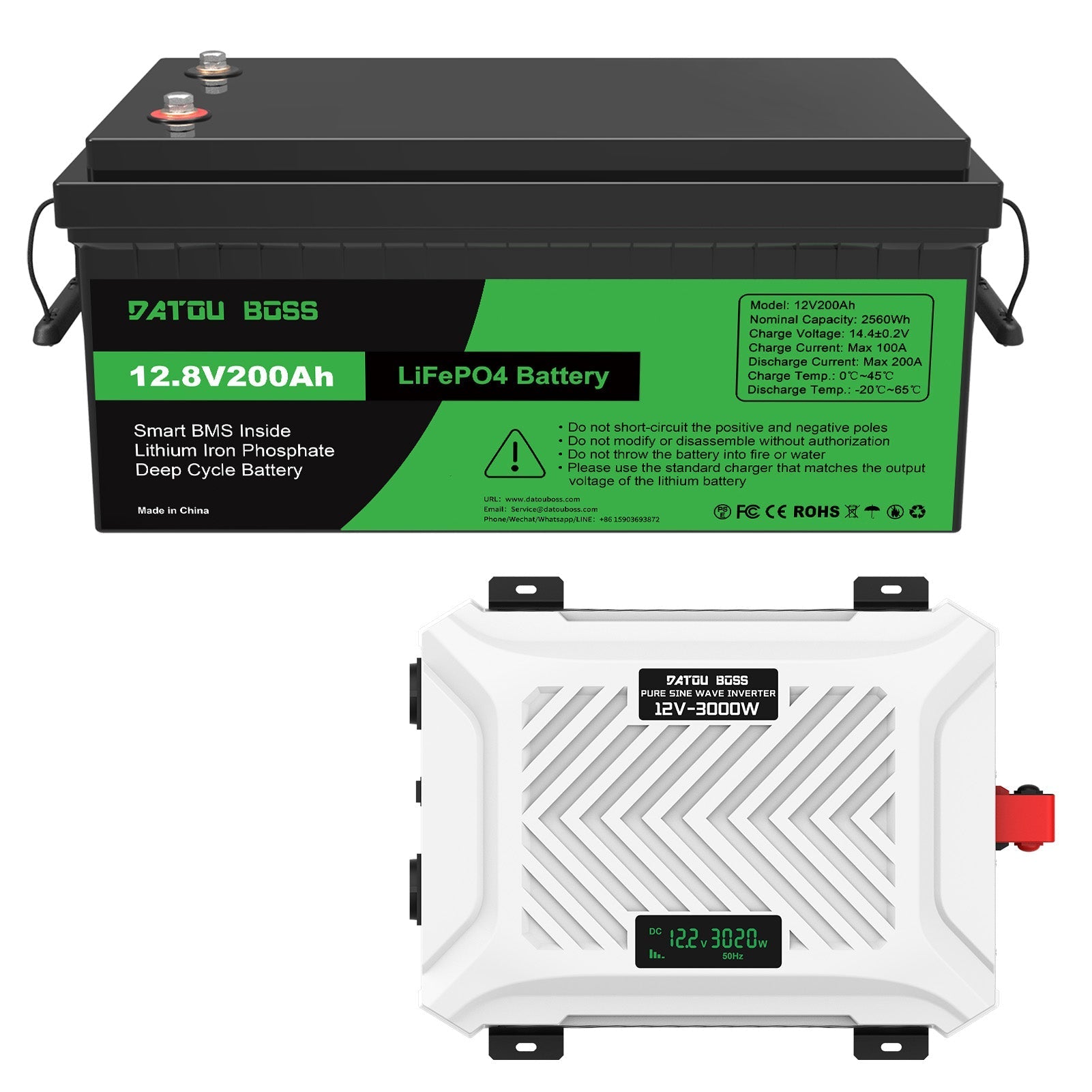

DATOUBOSS 12V 200Ah LiFePO4 Batterie mit 200A BMS Deep Cycle + 3000W Reiner Sinus Wechselrichter mit 6000W Spitzenleistung, Intelligenter Erkennung & …
Angebotspreis
€469,00
Regulärer Preis
€817,37
Bestellen Sie innerhalb der nächsten hours minutes , um es zu erhalten. Die voraussichtliche Lieferung erfolgt zwischen dem und dem
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
Das benötigen Sie vielleicht auch
DATOUBOSS 12V 200Ah LiFePO4 Batterie mit 200A BMS Deep Cycle + 3000W Reiner Sinus Wechselrichter mit 6000W Spitzenleistung, Intelligenter Erkennung & LCD-Anzeige, 2 EU-Steckdosen für Off-Grid Living, Wohnmobil-Abenteuer, Solaranlagen und Notstromlösungen
Angebotspreis
€469,00
Regulärer Preis
€817,37
Inverter Specifications
| Parameter | 3000W | 3500W | 4000W |
|---|---|---|---|
| Model Number | 3000W | 3500W | 4000W |
| Rating | 3000W | 3500W | 4000W |
| Peak Power | 6000W | 7000W | 8000W |
| Output Voltage | 230V | ||
| Output Voltage Accuracy | ±10V | ||
| Conversion Efficiency | ≥90% | ||
| Voltage Range (Input) | 12Vdc (10-16) / 24Vdc (20-32) | ||
| Low Pressure Alarm Indication | 12V (10.5V±0.3) / 24V (21V±0.3) | ||
| Low Voltage Protection | 12V (10V±0.3) / 24V (20V±0.3) | ||
| High Voltage Protection | 12V (16V±0.3) / 24V (32V±0.3) | ||
| Low Voltage Auto Recovery | 12V (13V±0.3) / 24V (26V±0.3) | ||
| No-load Current | 2.3A | ||
| USB Charging | Type-C, USB 5V 2.1A | ||

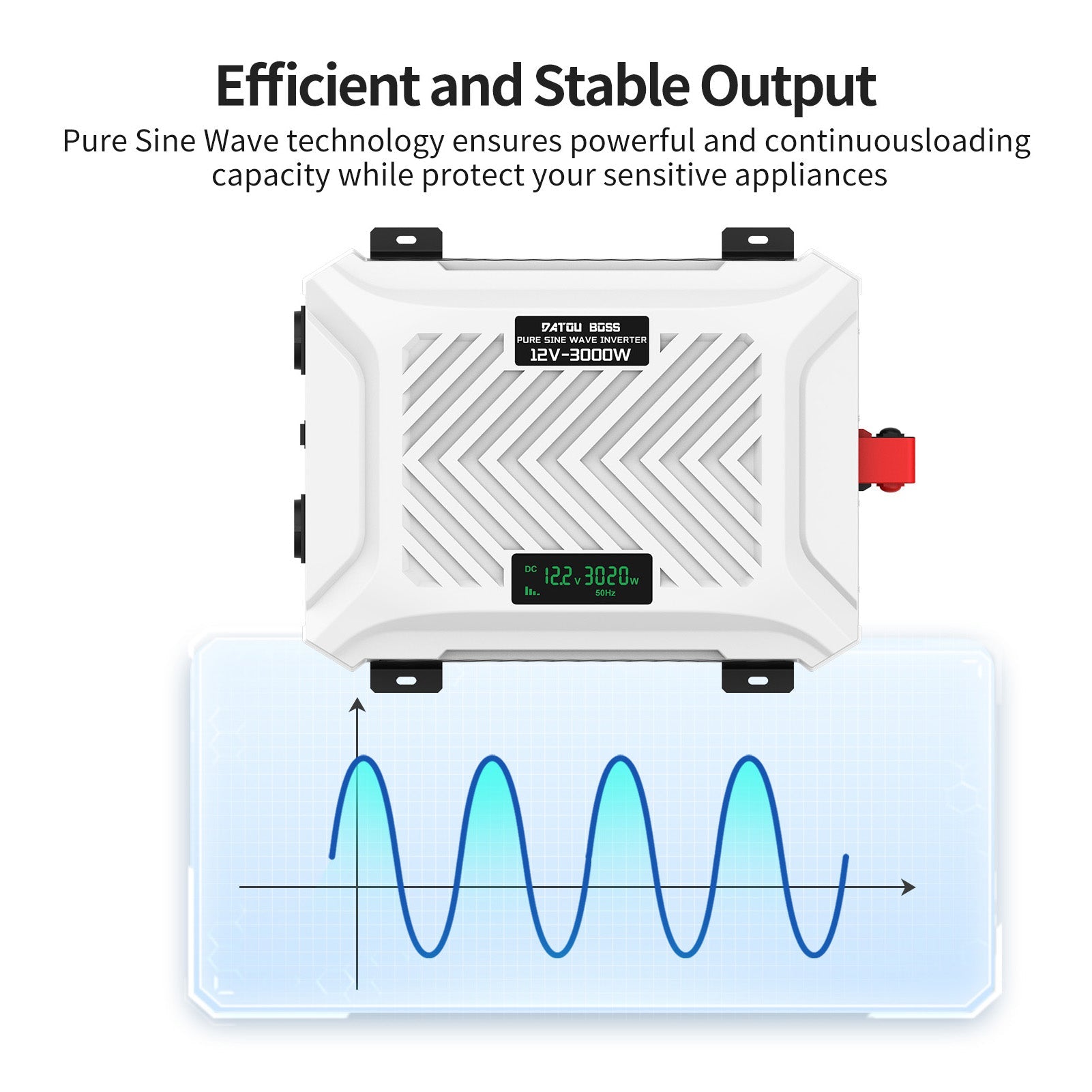

| Waveform THD | ≤3% | ||

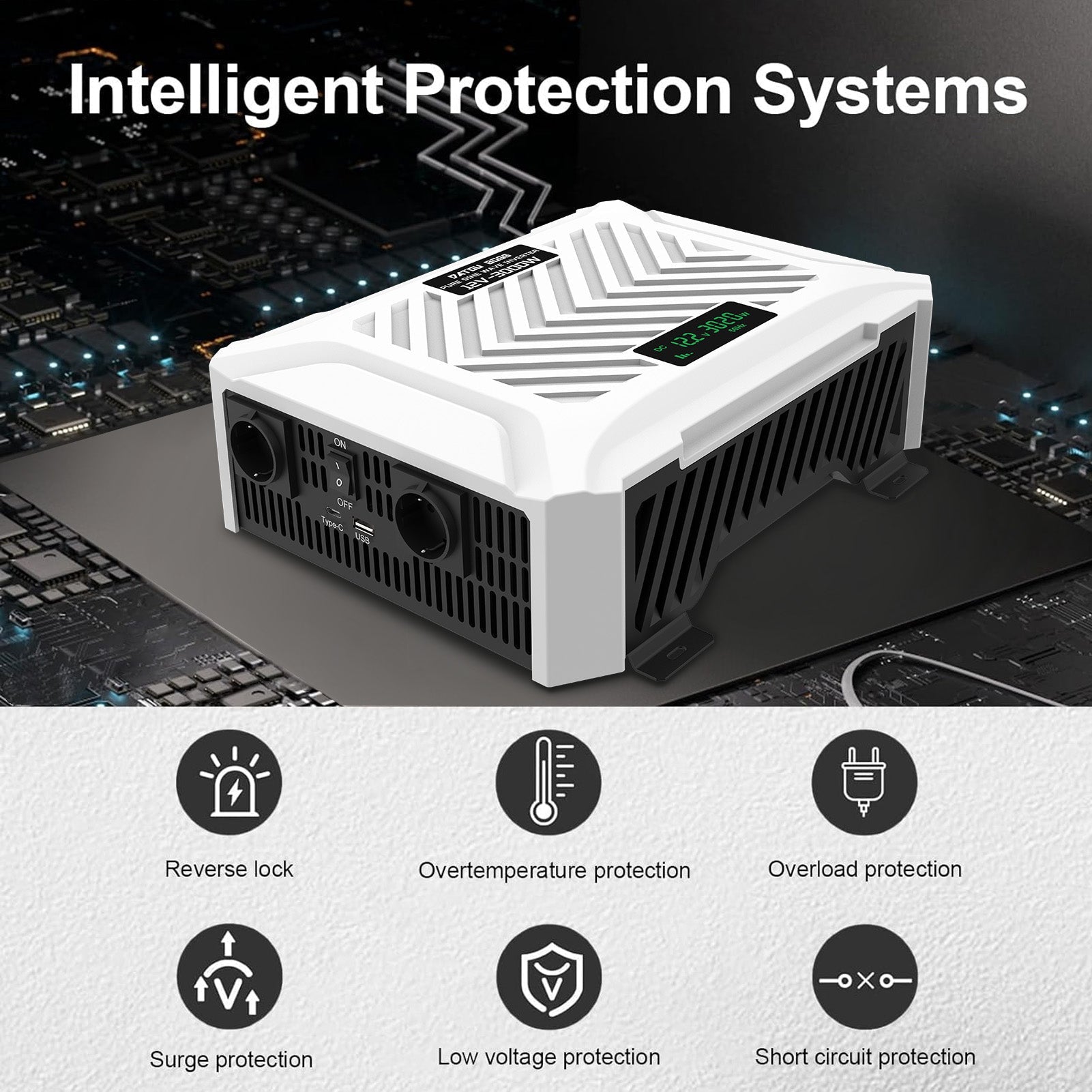

| Short Circuit Protection | YES | ||
| Buzzers | YES | ||

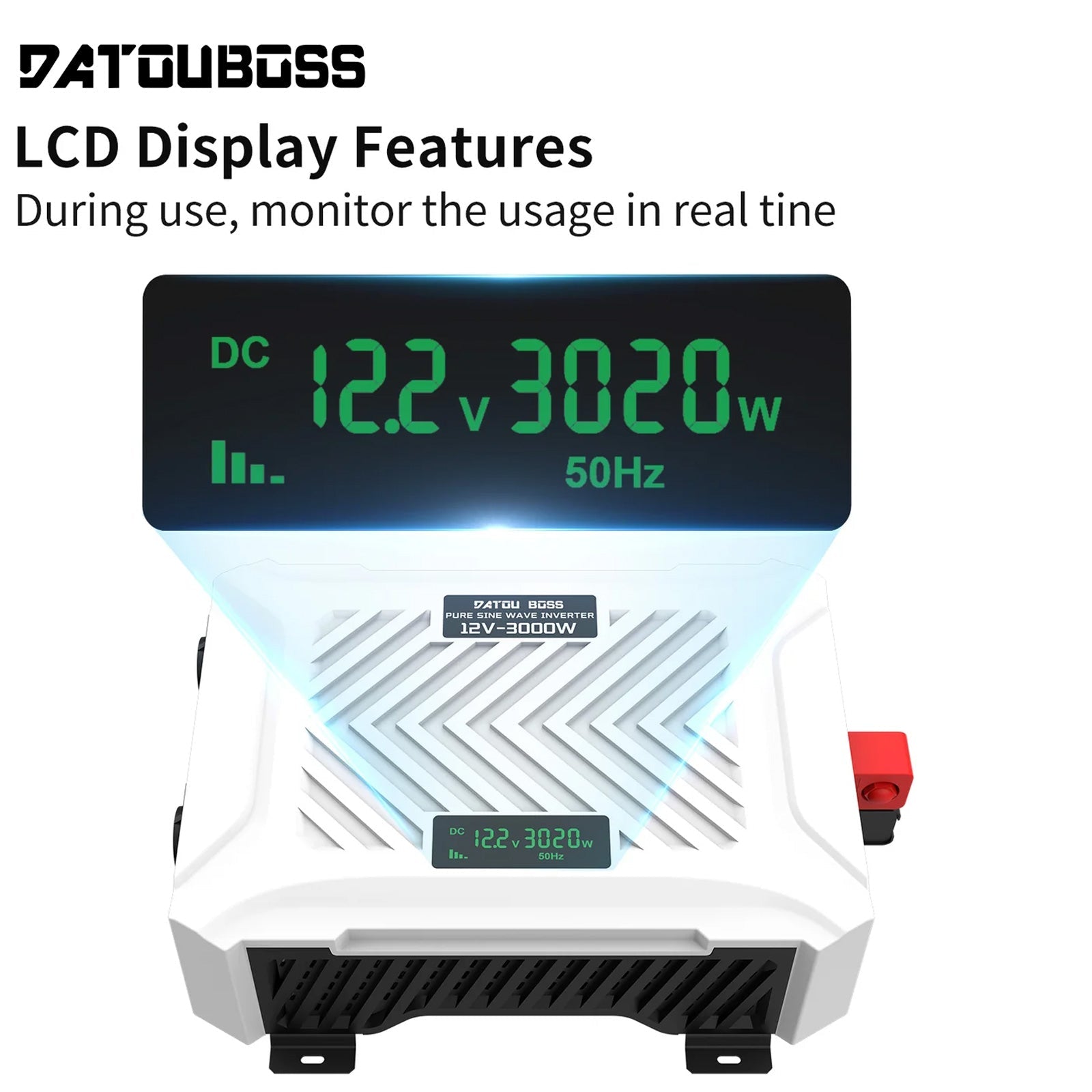

| LCD Display | Input Voltage, Output Voltage, Power, Capacity, Frequency, Alarm Identification | ||
| Maximum Working Temperature | 80°C | ||
Battery Specifications

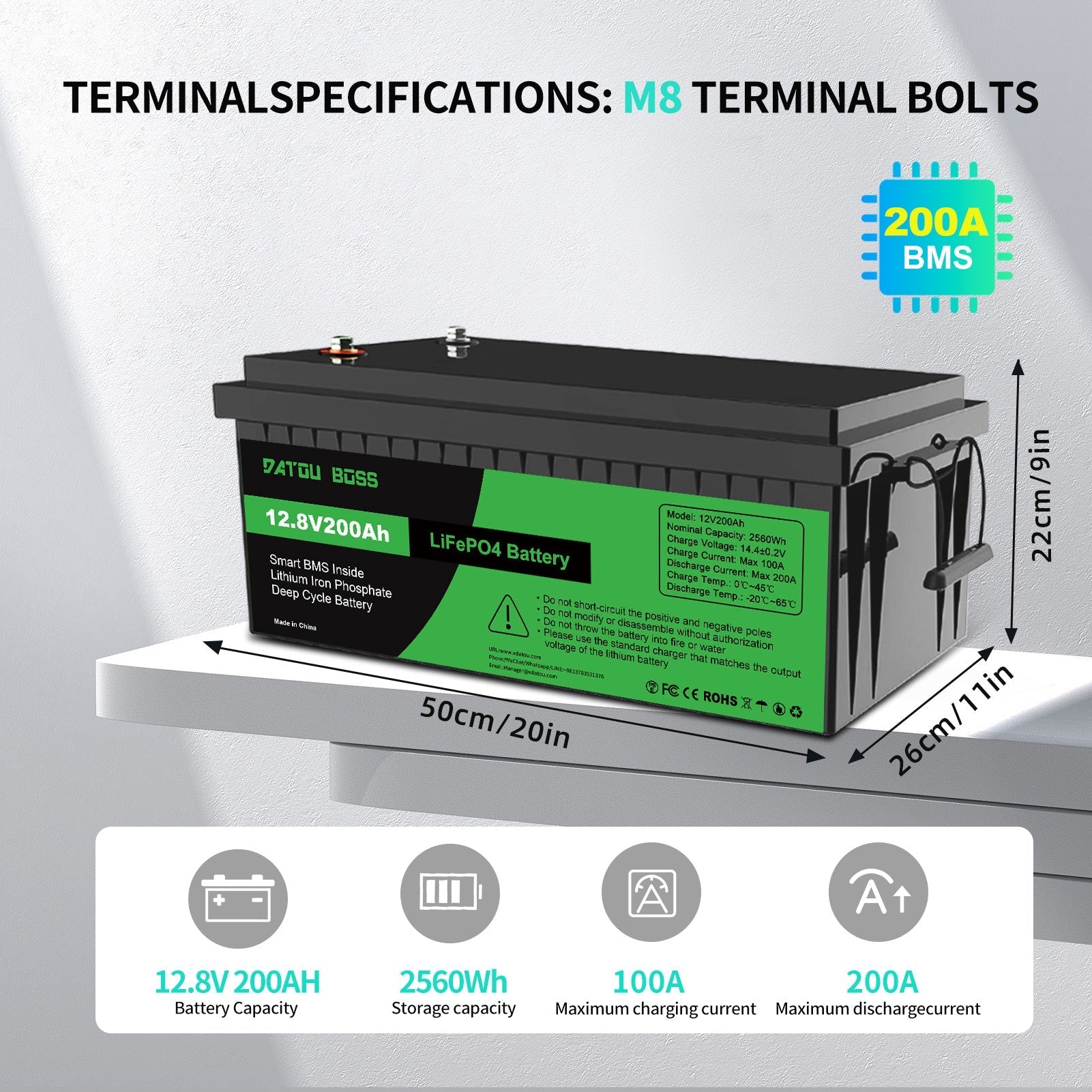

| Parameter | 12V 100Ah | 12V 200Ah | 12V 300Ah | 24V 100Ah | 48V 100Ah |
|---|---|---|---|---|---|
| Capacity (Energy) | 1280Wh | 2560Wh | 3840Wh | 2560Wh | 5120Wh |
| Charging Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.2±0.4V | 57.6±0.8V |
| Max Charge Current | 50A | 100A | 100A | 50A | 50A |
| Rated Discharge Current | 100A | 200A | 200A | 100A | 100A |
| Maximum Discharge Current | 120A | 240A | 240A | 120A | 120A |

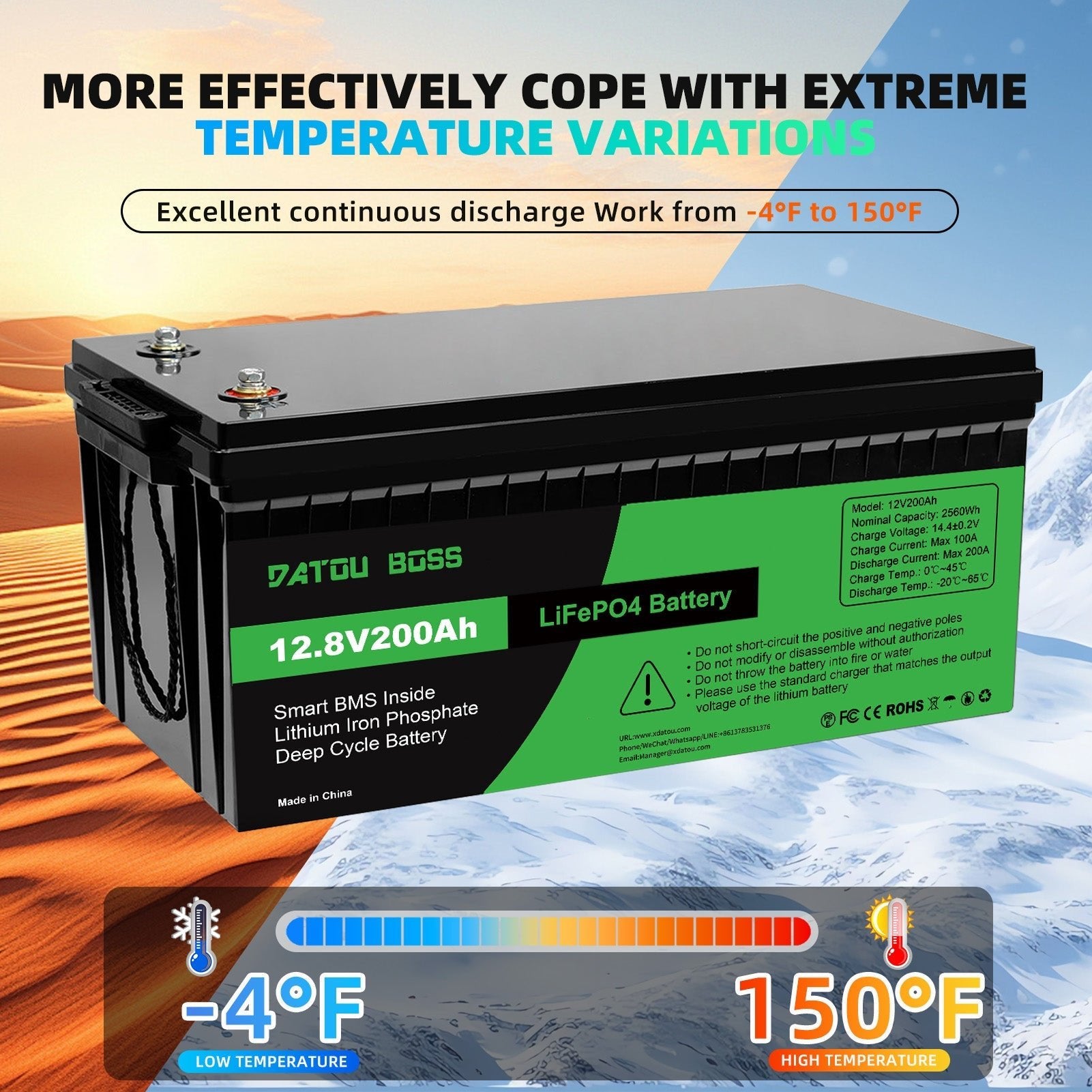

| Charging Temperature | 0°C ~ 45°C (32°F ~ 113°F) | ||||
| Discharge Temperature | -10°C ~ 60°C (14°F ~ 140°F) | ||||
| Low Temperature Protection (Charging) | -5°C ±5°C (14°F ~ 32°F) | ||||
| Low Temperature Protection (Discharging) | -20°C ±5°C (-13°F ~ 5°F) | ||||
| High Temperature Protection (Charging) | 65°C ±5°C (140°F ~ 158°F) | ||||
| High Temperature Protection (Discharging) | 75°C ±5°C (158°F ~ 176°F) | ||||
| Storage Temperature (1-3 months) | -20°C ~ 45°C (-4°F ~ 113°F) | ||||
| Storage Temperature (1 year) | -20°C ~ 20°C (-4°F ~ 68°F) | ||||
| Depth of Discharge (DoD) | ≥80% | ||||

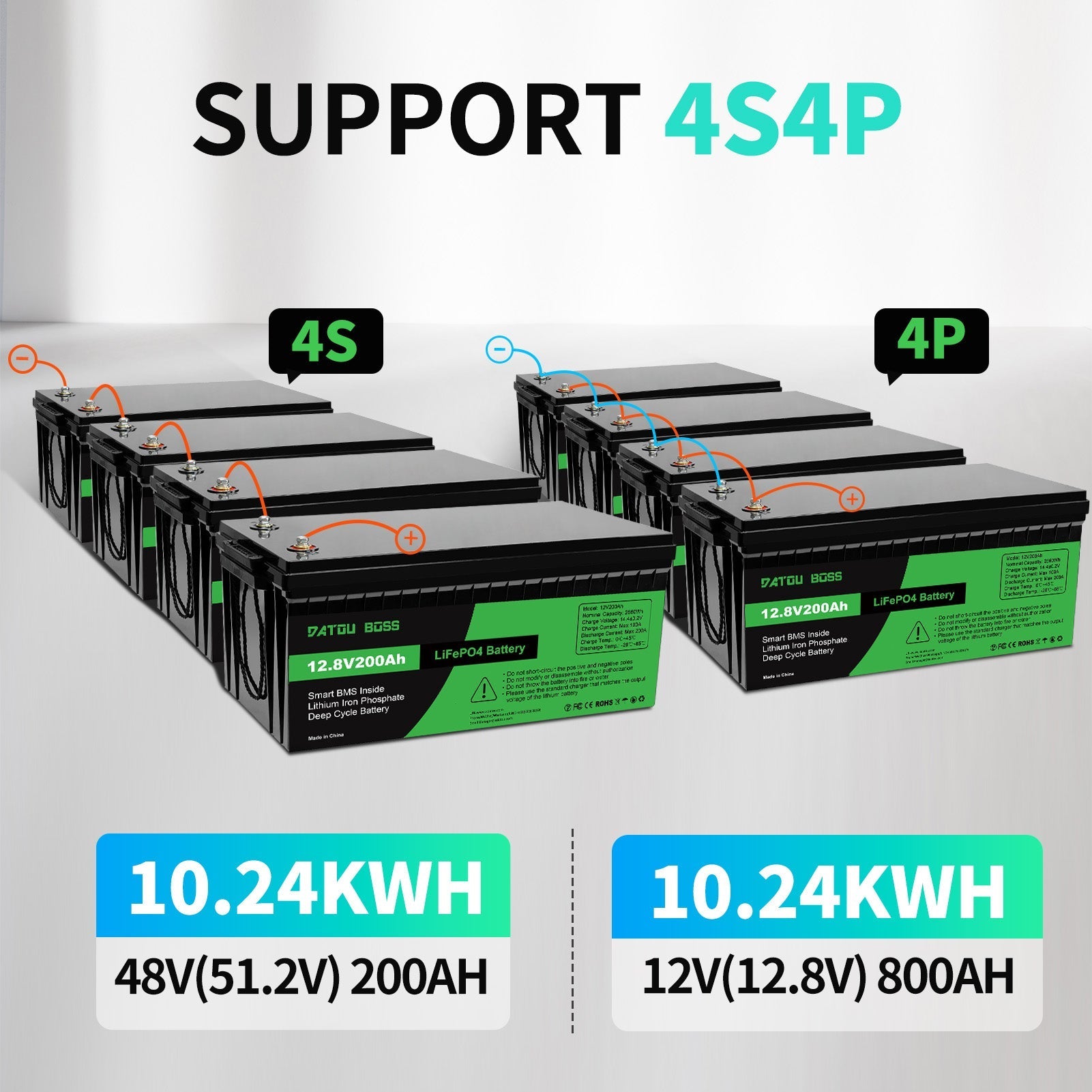

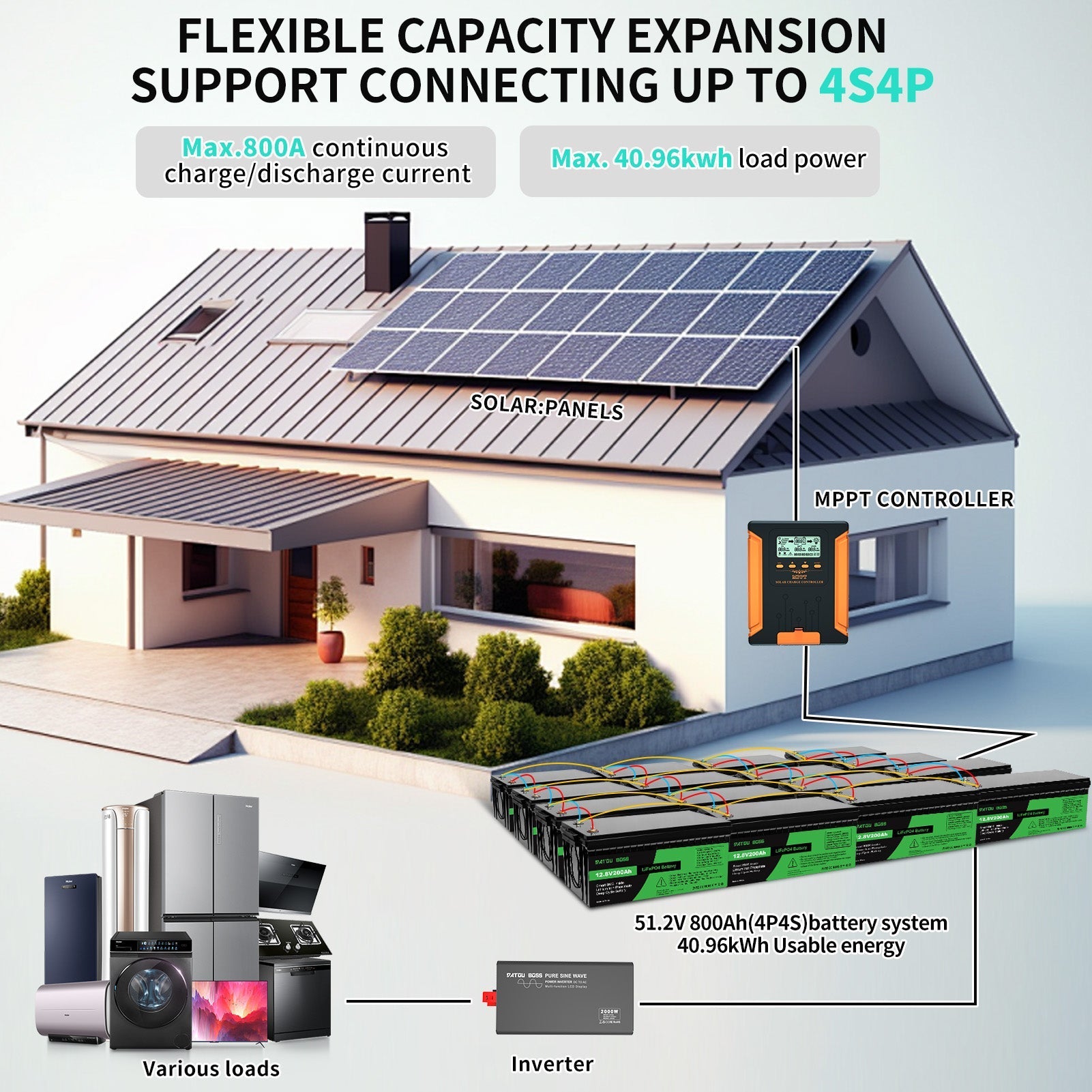

| Series / Parallel Connection | Up to 4S4P (4 in series, 4 in parallel) | ||||

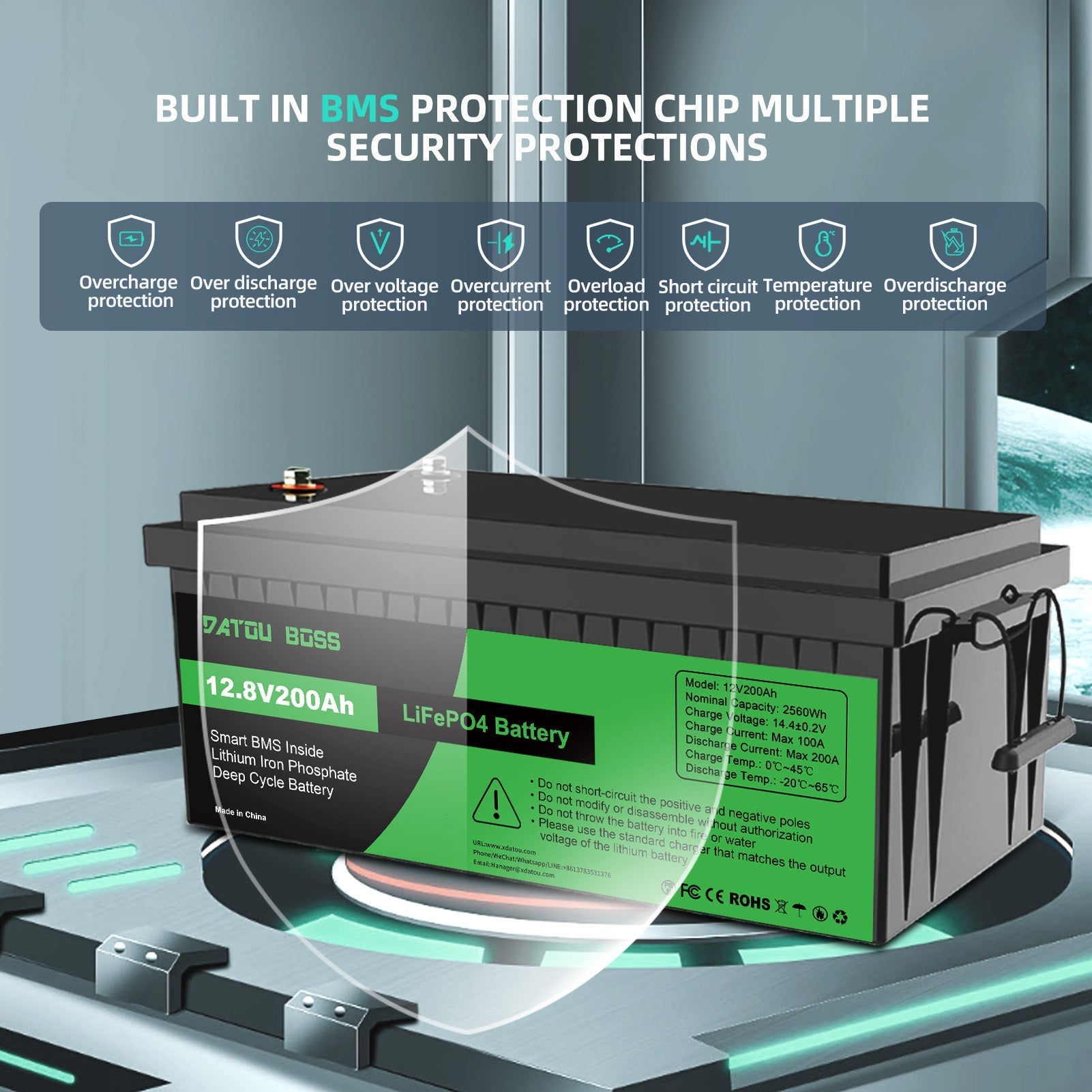

| Battery Management System | Built-in BMS | ||||
| Shell Material | ABS | ||||
| Terminal Material | Brass (Conductivity ≥98%) | ||||
Controller Setting Reference (for LiFePO₄)
| Parameter | 12V System (N=1) | 24V System (N=2) | 48V System (N=4) |
|---|---|---|---|
| System Voltage | 12.0V × N* | 24.0V × N* | 48.0V × N* |
| Boost Charge Voltage | 14.2V × N* | 28.4V × N* | 56.8V × N* |
| Over-discharge Recovery Voltage | 12.6V × N* | 25.2V × N* | 50.4V × N* |
| Over-discharge Cut-off Voltage | 11.1V × N* | 22.2V × N* | 44.4V × N* |
*Note: For 24V systems, N=2; for 48V systems, N=4. Multiply the given voltage by N for the actual setting.
