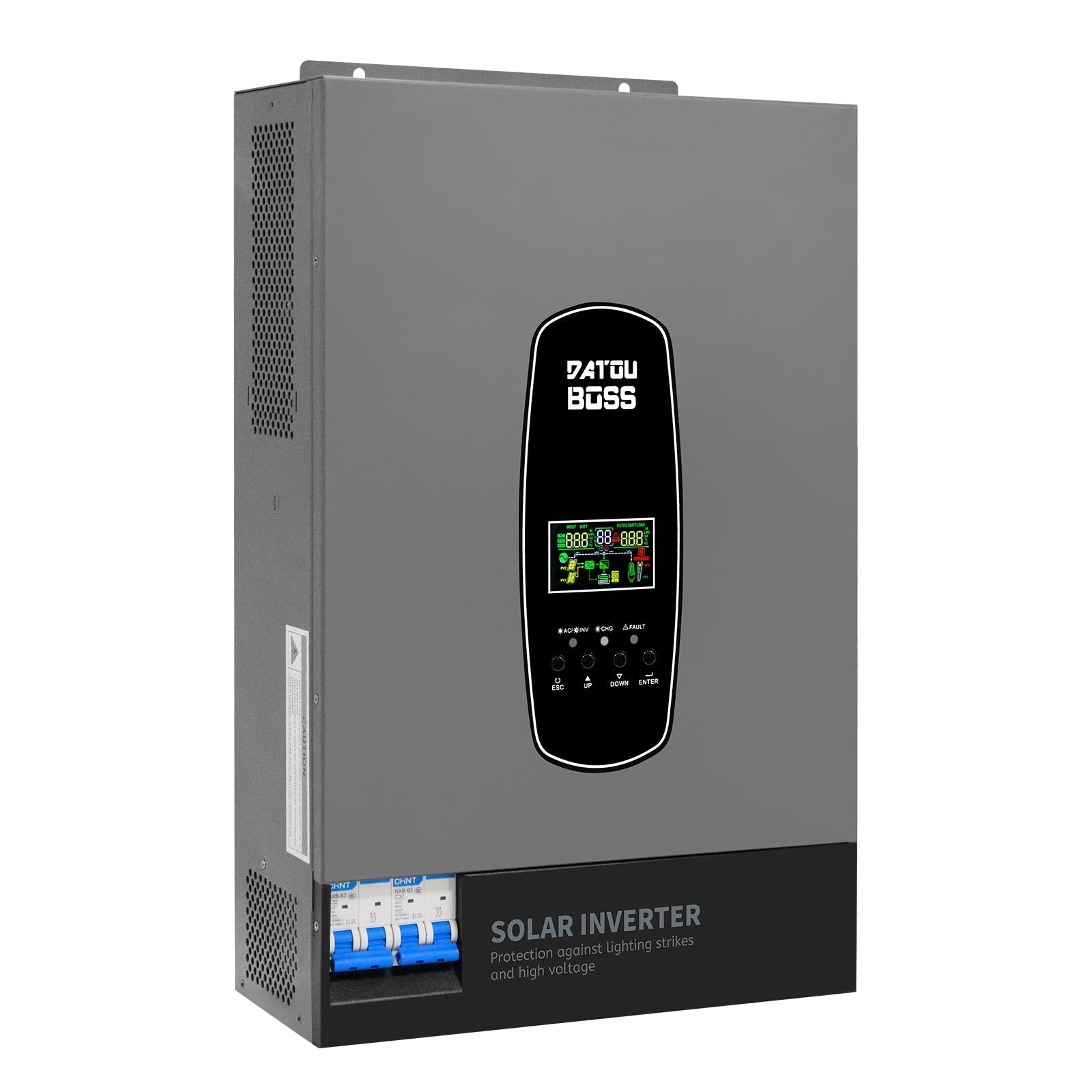

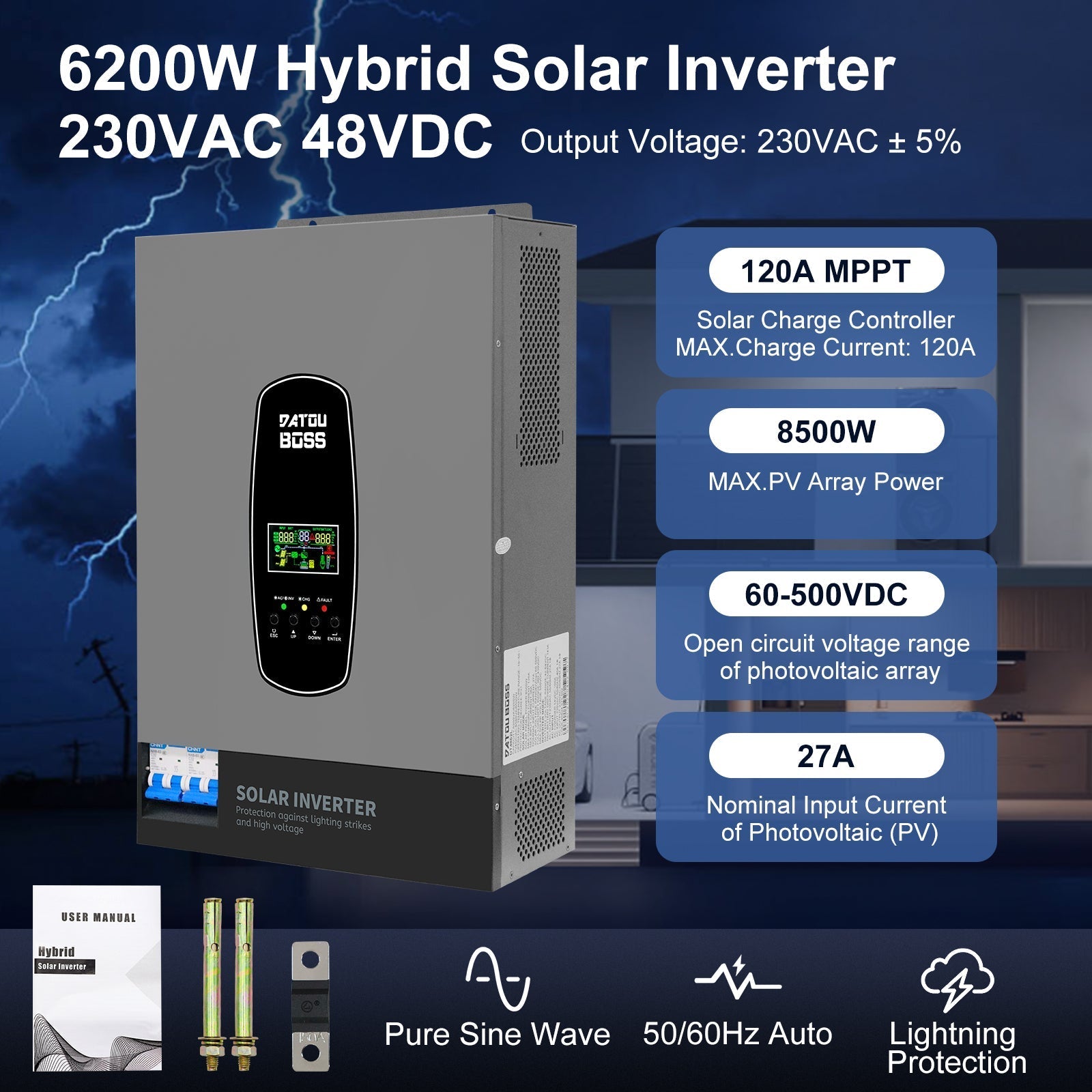

DATOUBOSS 6200W Solar-Hybrid-Wechselrichter 48VDC auf 230VAC, 120A MPPT, 8500W PV-Eingang, BMS-Schutz, Batterieloser Betrieb, 27A PV-Eingang, Blitzsch…
Angebotspreis
€265,95
Regulärer Preis
€467,64
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS 6200W Solar-Hybrid-Wechselrichter 48VDC auf 230VAC, 120A MPPT, 8500W PV-Eingang, BMS-Schutz, Batterieloser Betrieb, 27A PV-Eingang, Blitzschutz (Kompatibel mit WiFi 04)
Angebotspreis
€265,95
Regulärer Preis
€467,64
| Category | Details |
|---|---|
| Input Connection | L + N + PE |
| Rated Input Voltage | 220/230/240 VAC |
| Voltage Range (APL Mode) | 90 – 280 VAC ±3V |
| Voltage Range (UPS Mode) | 170 – 280 VAC ±3V |
| Frequency | 50/60 Hz (Auto Adaptation) |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
| Humidity | 20% ~ 95% (Non-condensing) |
| Altitude | ≤1000 m (Derating above 1000m, maximum 4000m, according to IEC62040) |
| Noise Level | ≤50 dB |

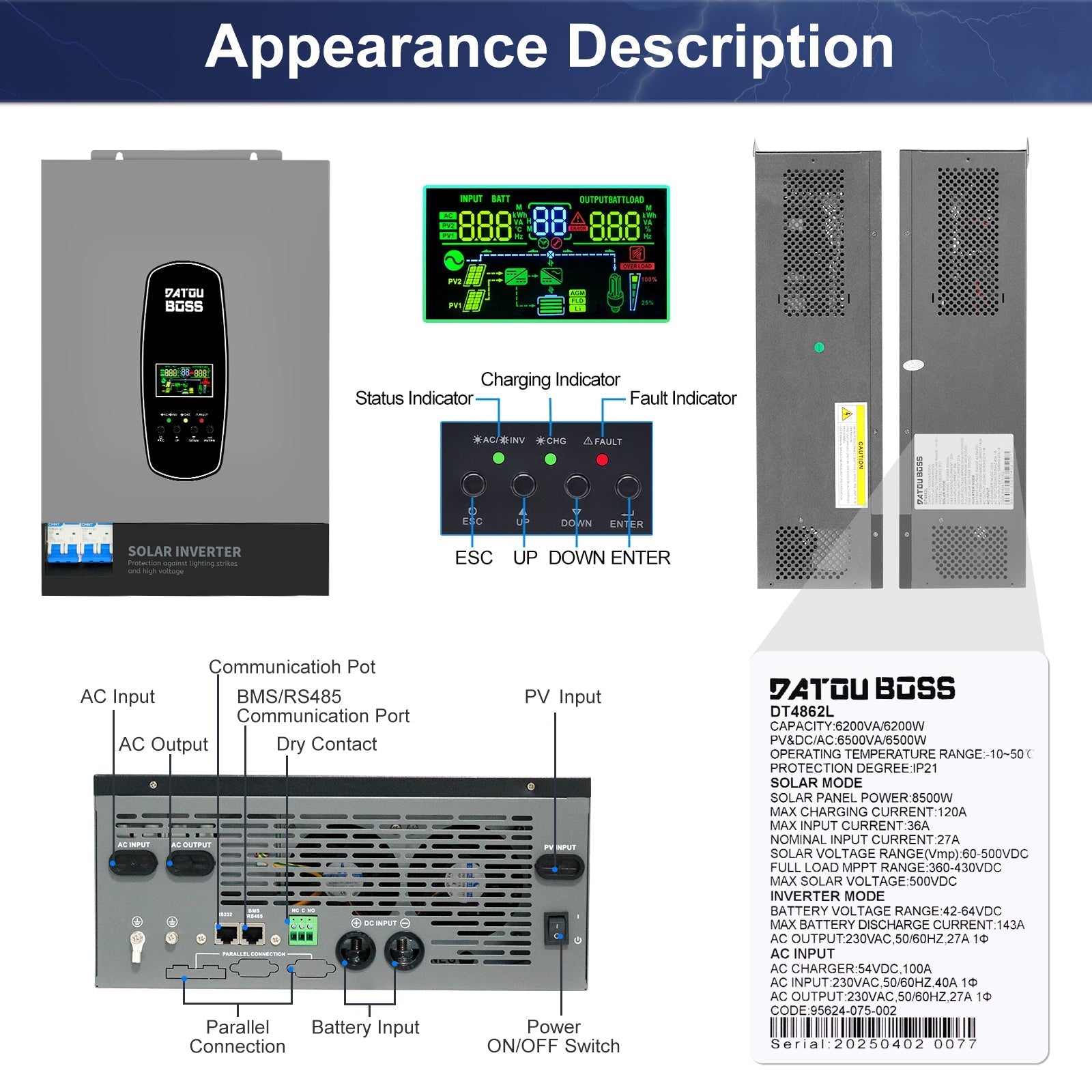

| Display | LCD (Operating Mode, Load, Input/Output Status, etc.) |
| Communication Interface | RS232 (2400 baud), BMS Communication Card, WiFi Card (optional), Dry Contact |
| Parallel Function | Supported (Single-phase/Three-phase) |

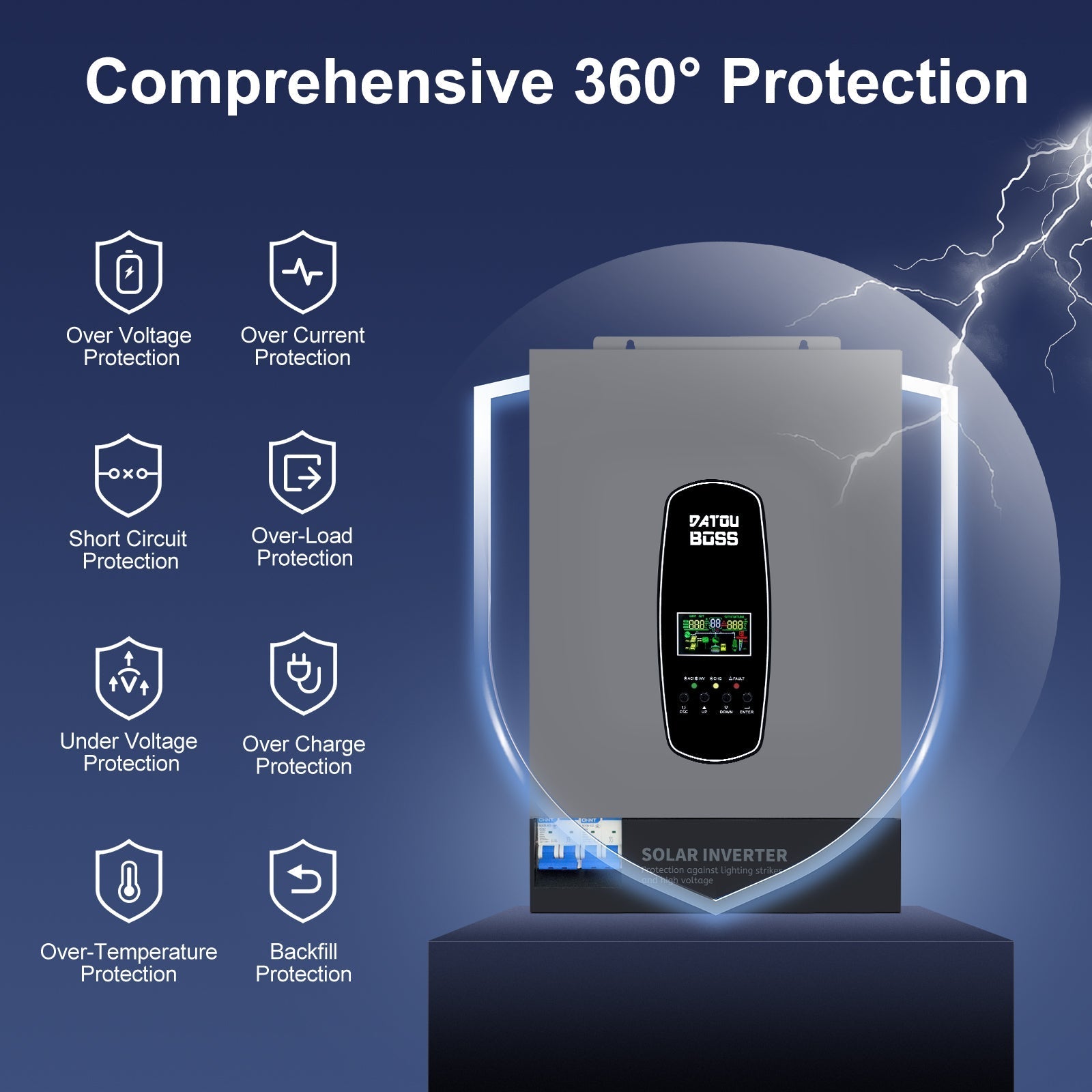

| Overload Protection | Yes |
| Overtemperature Protection | Yes |
| Output Short Circuit Protection | Yes |

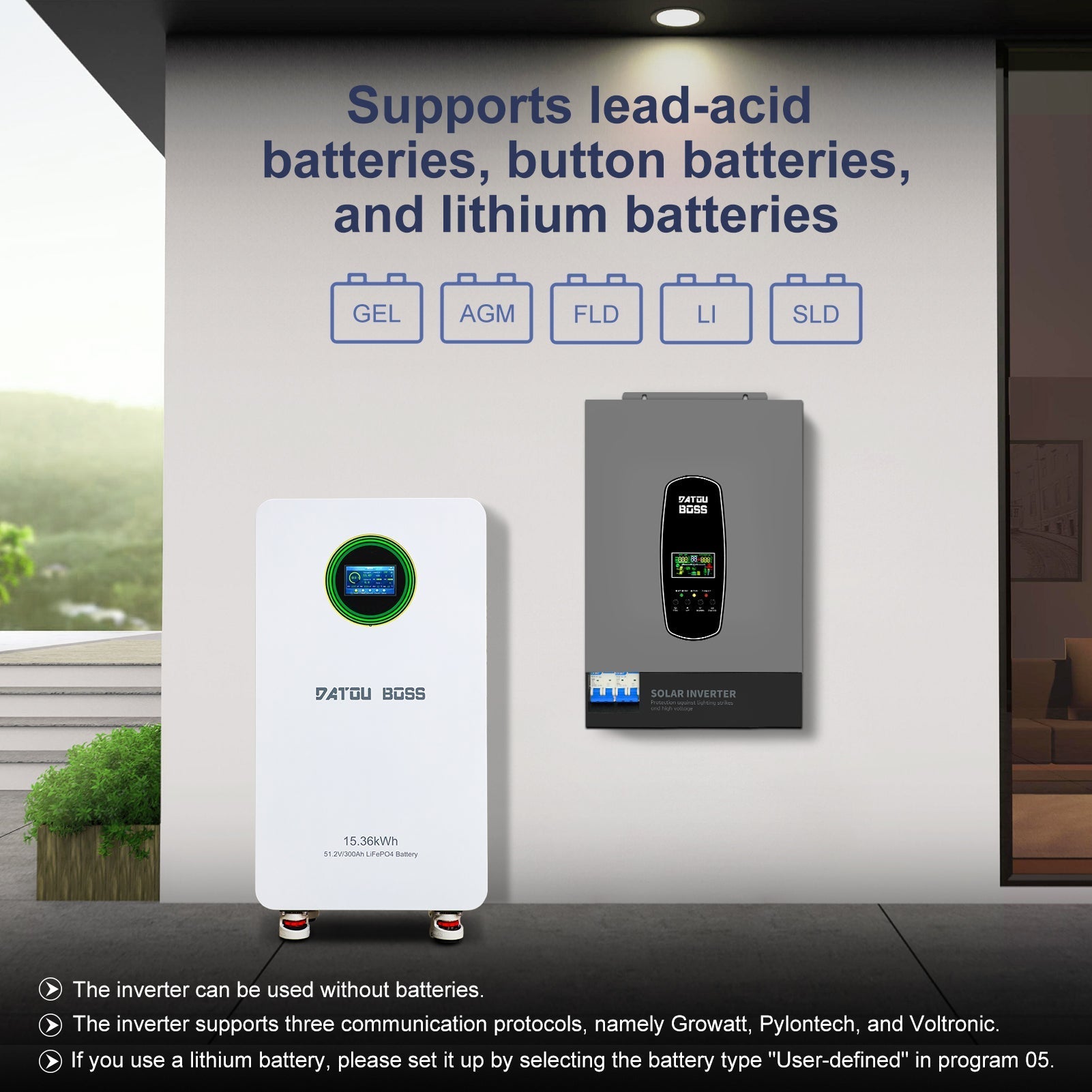

| Battery Overvoltage/Undervoltage Protection | Yes |
| Anti-Islanding Protection | Yes |
| Parallel System Note | This inverter series supports a maximum of 9 units in parallel, enabling single-phase or three-phase output. When setting up parallel systems, choose the corresponding mode in LCD settings program 04 (PAL for single-phase, 3P1/3P2/3P3 for three-phase). The system must share the same battery bank, and the communication cable connections must be correct. |
