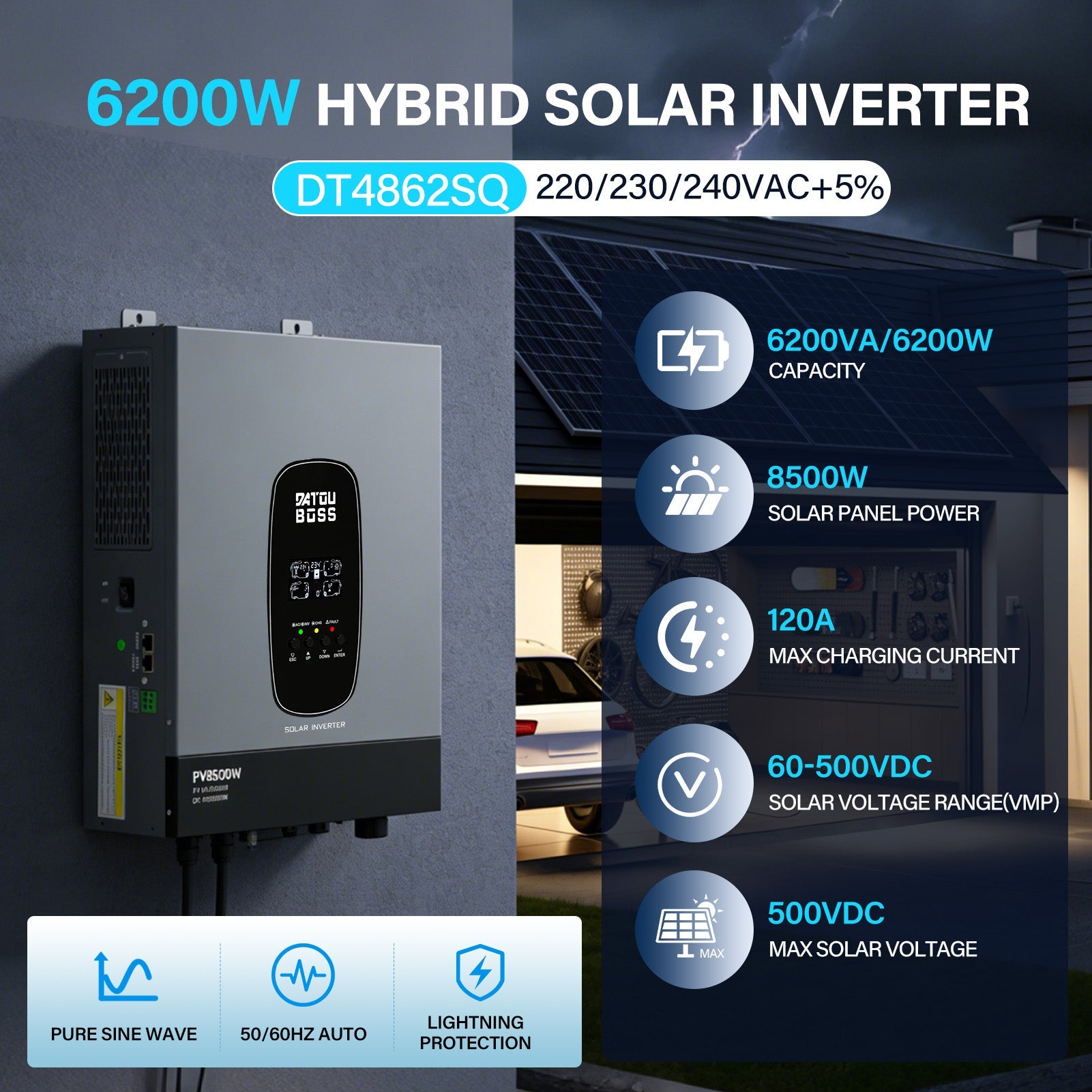

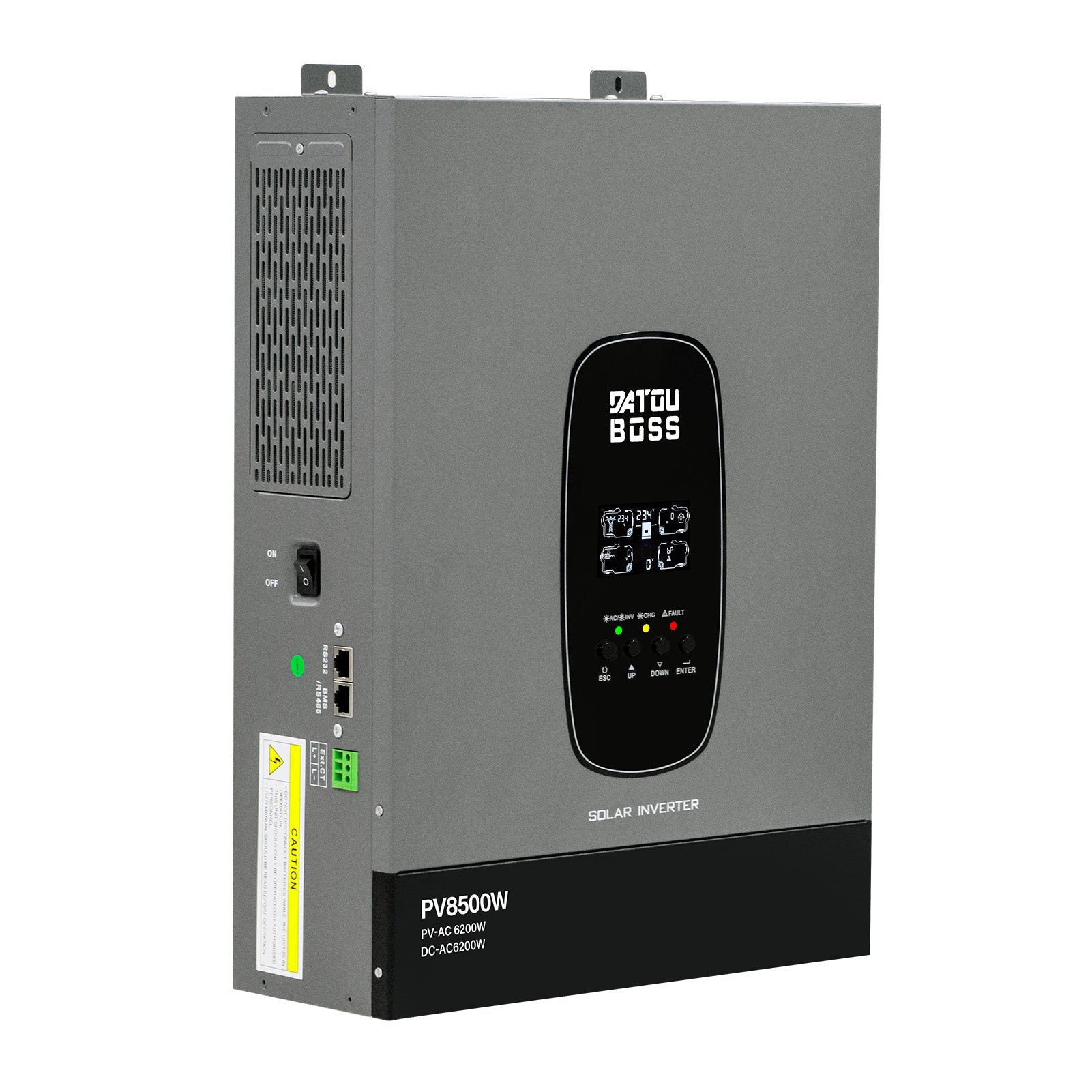

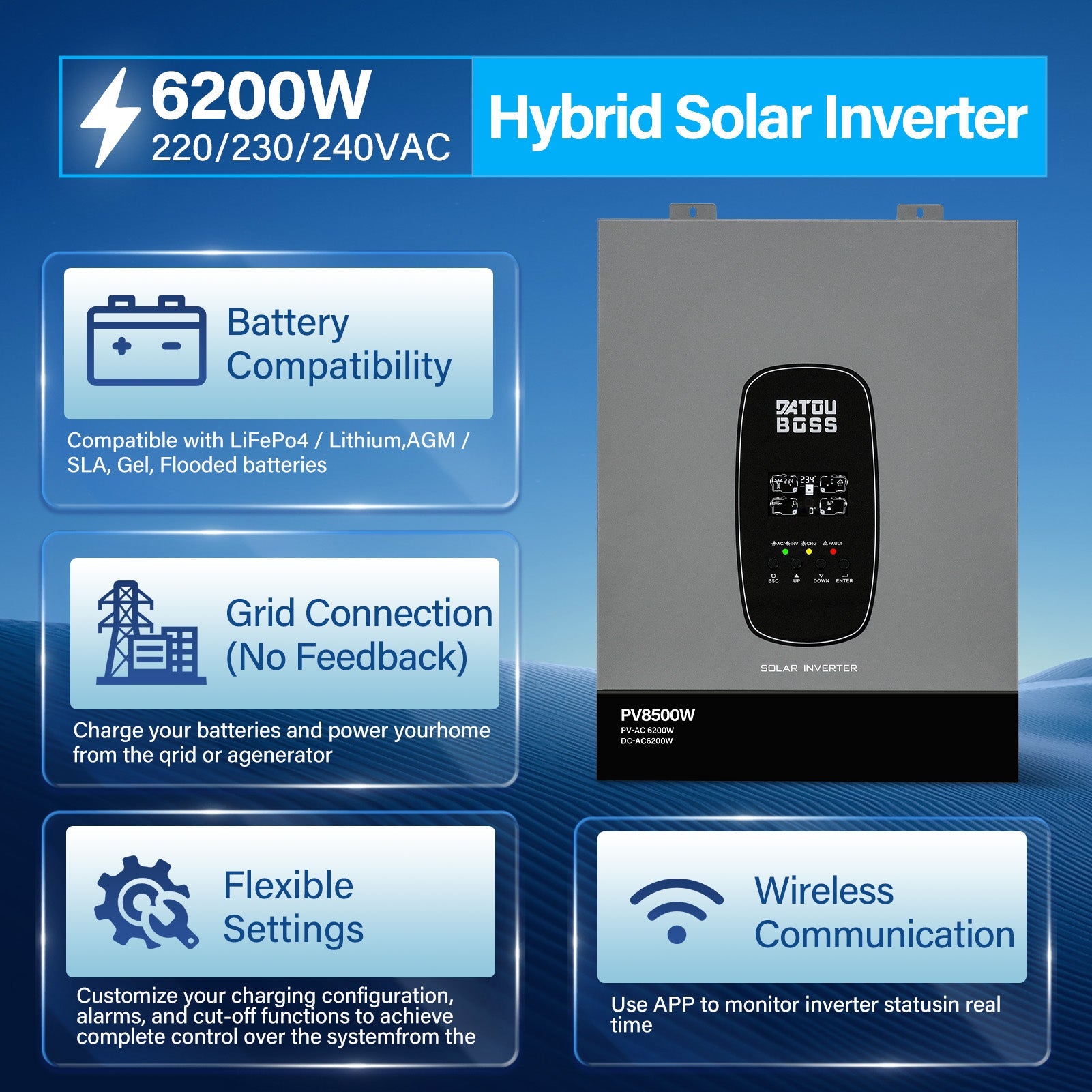

DATOUBOSS 6200W Solar-Hybrid-Wechselrichter 48VDC auf 230VAC, reine Sinuswelle, 120A MPPT, 8500W PV-Eingang, batterieloser Betrieb, BMS-Schutz, 27A PV…
Angebotspreis
€199,95
Regulärer Preis
€330,00
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need

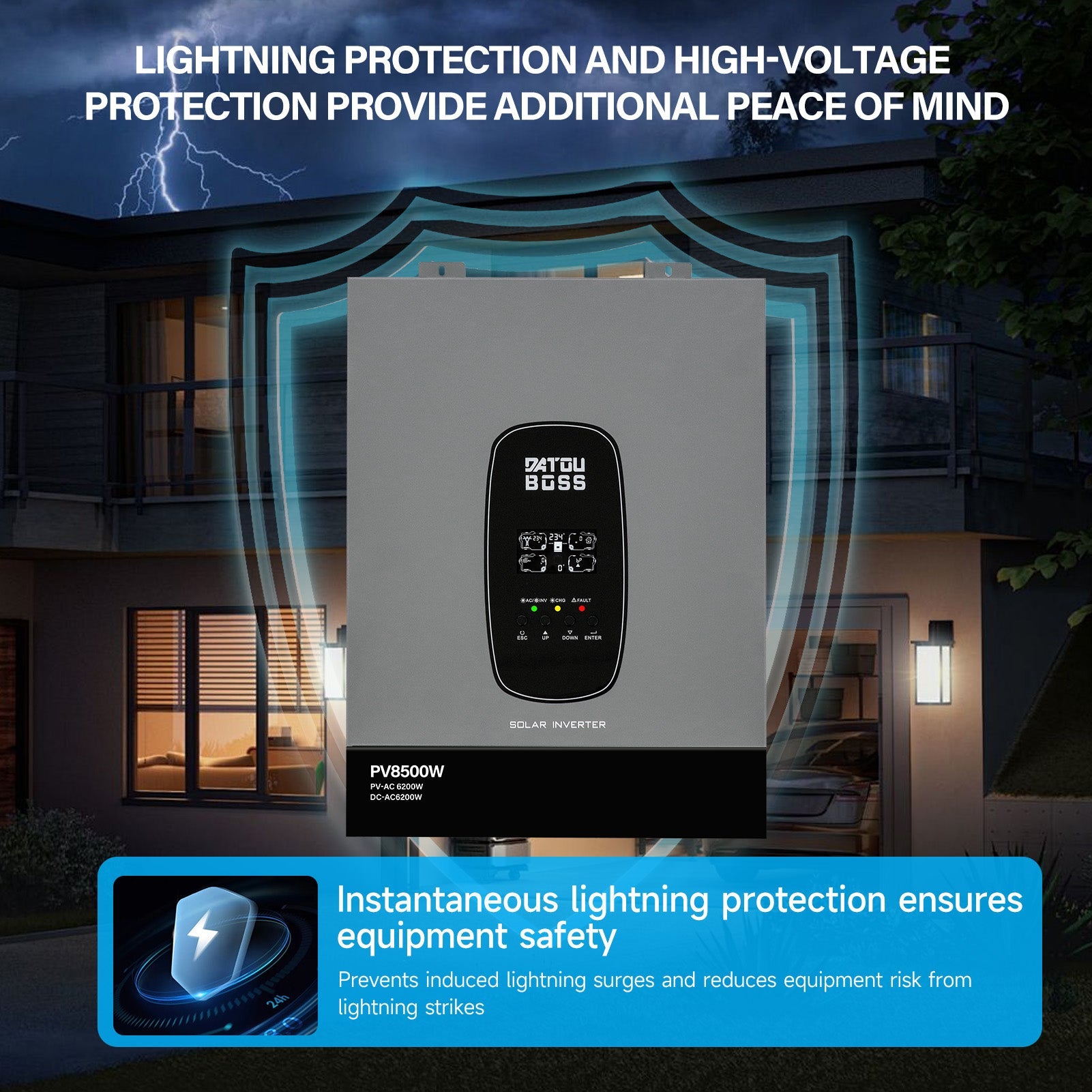

DATOUBOSS 6200W Solar-Hybrid-Wechselrichter 48VDC auf 230VAC, reine Sinuswelle, 120A MPPT, 8500W PV-Eingang, batterieloser Betrieb, BMS-Schutz, 27A PV-Eingang, Blitz- und Rückflussschutz (kompatibel mit WiFi 04)
Angebotspreis
€199,95
Regulärer Preis
€330,00

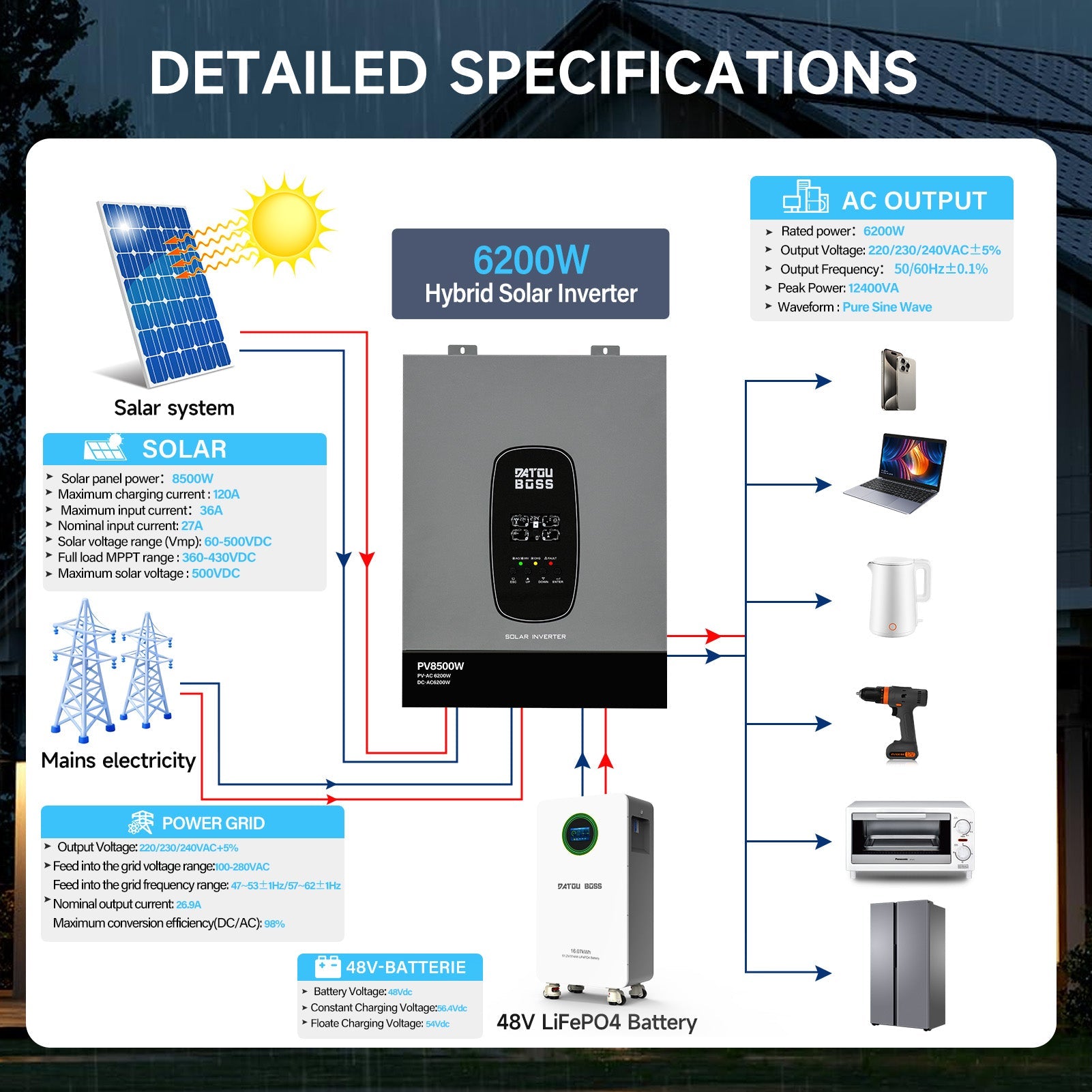

| Category | Details |
|---|---|
| Model | DT4862S |
| Rated Power (Battery Inverter) | 6200W |
| Rated Power (PV Inverter) | 6200W |
| Peak Power | 12400VA |
| Output Waveform | Pure Sine Wave |
| Nominal Input Voltage | 220/230/240VAC |
| Input Voltage Range (APL Mode) | 90 ~ 280VAC ±3V |
| Input Voltage Range (UPS Mode) | 170 ~ 280VAC ±3V |
| Input Frequency | 50/60Hz (Auto Adaptive) |
| Output Voltage | 220/230/240VAC ±5% |
| Output Frequency | 50/60Hz ±0.1% |
| Transfer Time (UPS / APL) | 10ms / 20ms (adjustable) |
| Overload Capacity (Battery Mode) | 11s @ 105%~150% Load; 2s @ 150%~200% Load; 400ms @ >200% Load |
| Grid Feed Voltage Range | 100 ~ 280VAC |
| Grid Feed Frequency Range | 47~53±1Hz / 57~62±1Hz |
| Nominal Output Current (Grid-tie) | 26.9A |
| Power Factor Range | >0.99 |
| Max Conversion Efficiency (DC/AC) | 98% |
| Nominal Battery Voltage | 48Vdc |
| Constant Charging Voltage (Adjustable) | 56.4Vdc |
| Float Charging Voltage (Adjustable) | 54Vdc |
| PV Charging Mode | MPPT |
| Max PV Input Power | 8500W |
| MPPT Tracking Range | 60 ~ 500Vdc |
| Best PV Input Voltage | 360 ~ 430Vdc |
| Max PV Input Voltage | 500Vdc |
| Max PV Input Current | 27A |
| Max PV Charging Current | 120A |
| Max AC Charging Current | 100A |
| Max Total Charging Current | 120A |
| Output Source Priority Modes | SUB, SBU, PEC (with external CT support) |
| Charger Priority Modes | Solar First, Solar+Utility, Only Solar, Solar Residual |

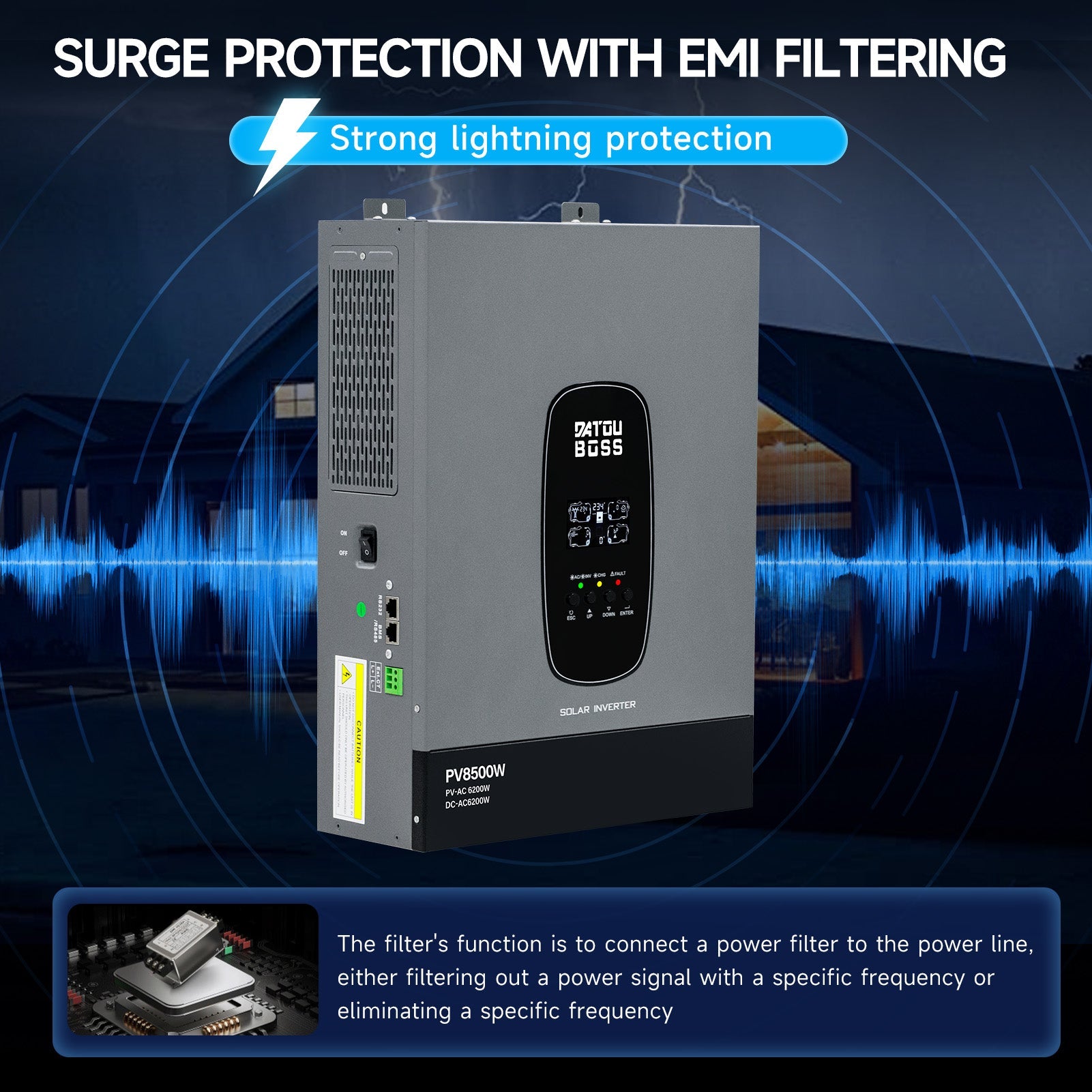

| Protections | Overload, over temperature, short circuit, battery over/under voltage, PV over voltage, fan lock, etc. |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
| Humidity | 20% ~ 95% (Non-condensing) |
| Altitude | ≤1000m (derating above 1000m, max 4000m, refer to IEC62040) |
| Noise Level | ≤50dB |

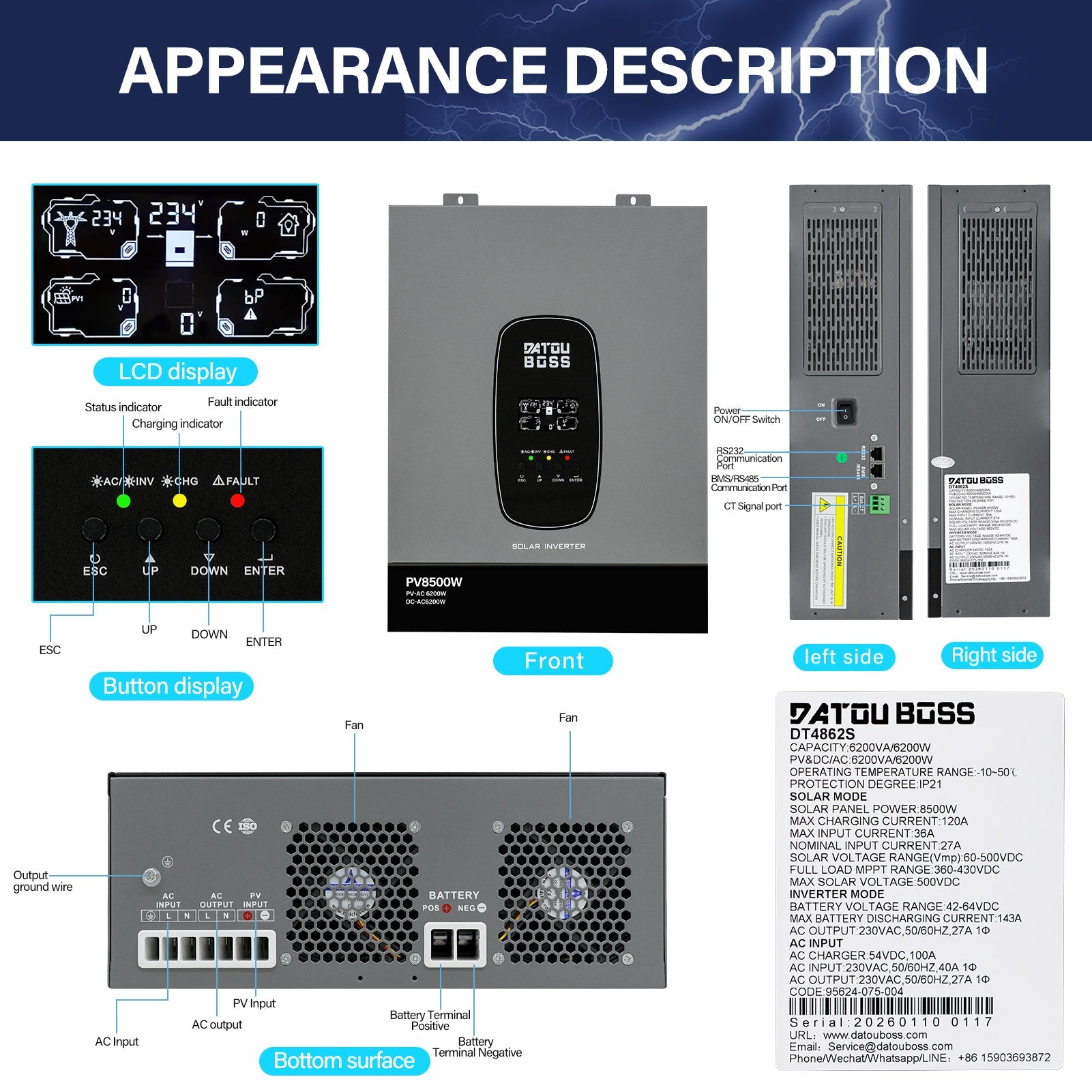

| Display | LCD (CAN display running mode, load, input/output, etc.) |
| Communication Interfaces | RS232 (2400 baud), BMS (Lithium), WiFi (optional), CT signal port |
| Standards & Certification | EN-IEC 60335-1, EN IEC 60335-2-29, IEC 62109-1 |
