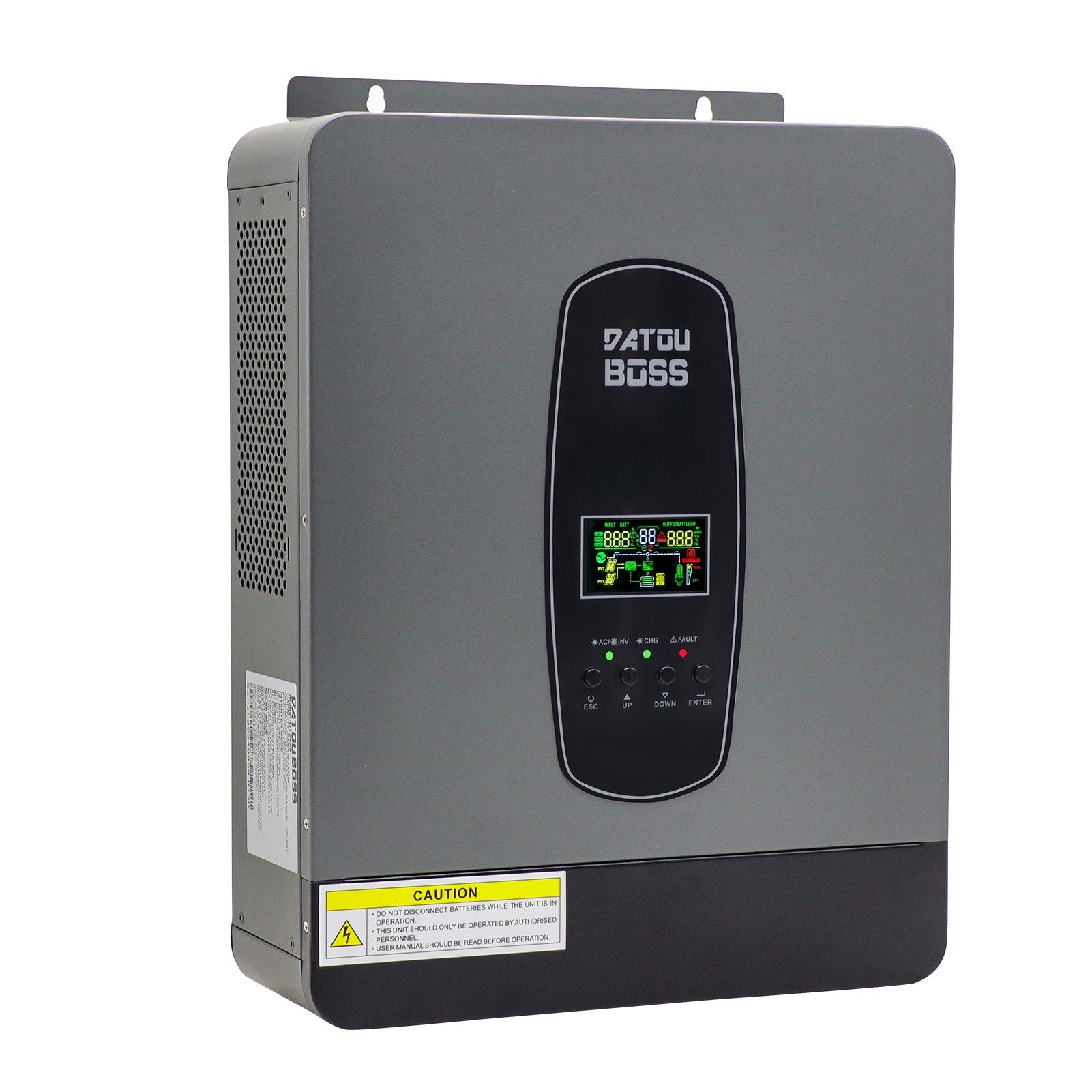

DATOUBOSS 3000W Hybrid-Wechselrichter 24V, Hybrid-Solar-Wechselrichter 24V Reine Sinuswelle 24V DC auf 220/230V AC, BMS-Schutzsystem, mit 100A MPPT fü…
Angebotspreis
€185,99
Regulärer Preis
€331,87
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS 3000W Hybrid-Wechselrichter 24V, Hybrid-Solar-Wechselrichter 24V Reine Sinuswelle 24V DC auf 220/230V AC, BMS-Schutzsystem, mit 100A MPPT für Blei-Säure- und Lithiumbatterien (kompatibel mit WiFi 04)
Angebotspreis
€185,99
Regulärer Preis
€331,87
| Category | 1012EMH | 2012EMH | 3024EMH | 5048EMH |
|---|---|---|---|---|
| Rated Capacity | 1000W / 2000VA | 1600W / 3200VA | 3000W / 6000VA | 5000W / 10000VA |
| Output Waveform | Pure Sine Wave | |||
| Transfer Time (UPS/APL) | 10ms / 20ms | |||
| Nominal Input Voltage | 220/230/240VAC | |||
| Input Voltage Range (APL Mode) | 90 ~ 280VAC ±3V | |||
| Input Voltage Range (UPS Mode) | 170 ~ 280VAC ±3V | |||
| Input Frequency | 50/60Hz (Auto Adaptive) | |||
| Output Voltage | 220/230/240VAC ±5% | |||
| Output Frequency | 50/60Hz ±0.1% | |||
| Peak Efficiency (Battery Mode) | >94% | |||
| Nominal Battery Voltage | 12Vdc | 12Vdc | 24Vdc | 48Vdc |
| Constant Charging Voltage (Adjustable) | 14.1Vdc | 14.1Vdc | 28.2Vdc | 56.4Vdc |
| Float Charging Voltage (Adjustable) | 13.5Vdc | 13.5Vdc | 27Vdc | 54Vdc |
| PV Charging Mode | MPPT | |||
| Max PV Input Power | 1000W | 2000W | 3000W | 5000W |
| MPPT Tracking Range | 30~450Vdc | 40~500Vdc | ||
| Best PV Input Voltage | 300~400Vdc | |||
| Max PV Input Voltage | 400Vdc | 500Vdc | ||
| Max PV Charging Current | 60A | 100A | 100A | 80A |
| Max AC Charging Current | 60A | |||
| Max Total Charging Current | 80A | 100A | ||
| Parallel Capability | Not supported (No parallel interface) | |||
| Protections | Overload, over temperature, short circuit, battery over charge/discharge, fan lock, PV over voltage | |||
| Operating Temperature | -10°C ~ 50°C | |||
| Storage Temperature | -15°C ~ 60°C | |||
| Humidity | 20% ~ 95% (Non-condensing) | |||
| Altitude | ≤1000m (derating above 1000m, max 4000m, refer to IEC62040) | |||
| Noise Level | <50dB | |||
| Display | LCD (running mode, load, input/output, etc.) | |||
| Communication Interfaces | RS232 (Baud rate 2400), Lithium BMS communication port, Dry contact | |||
