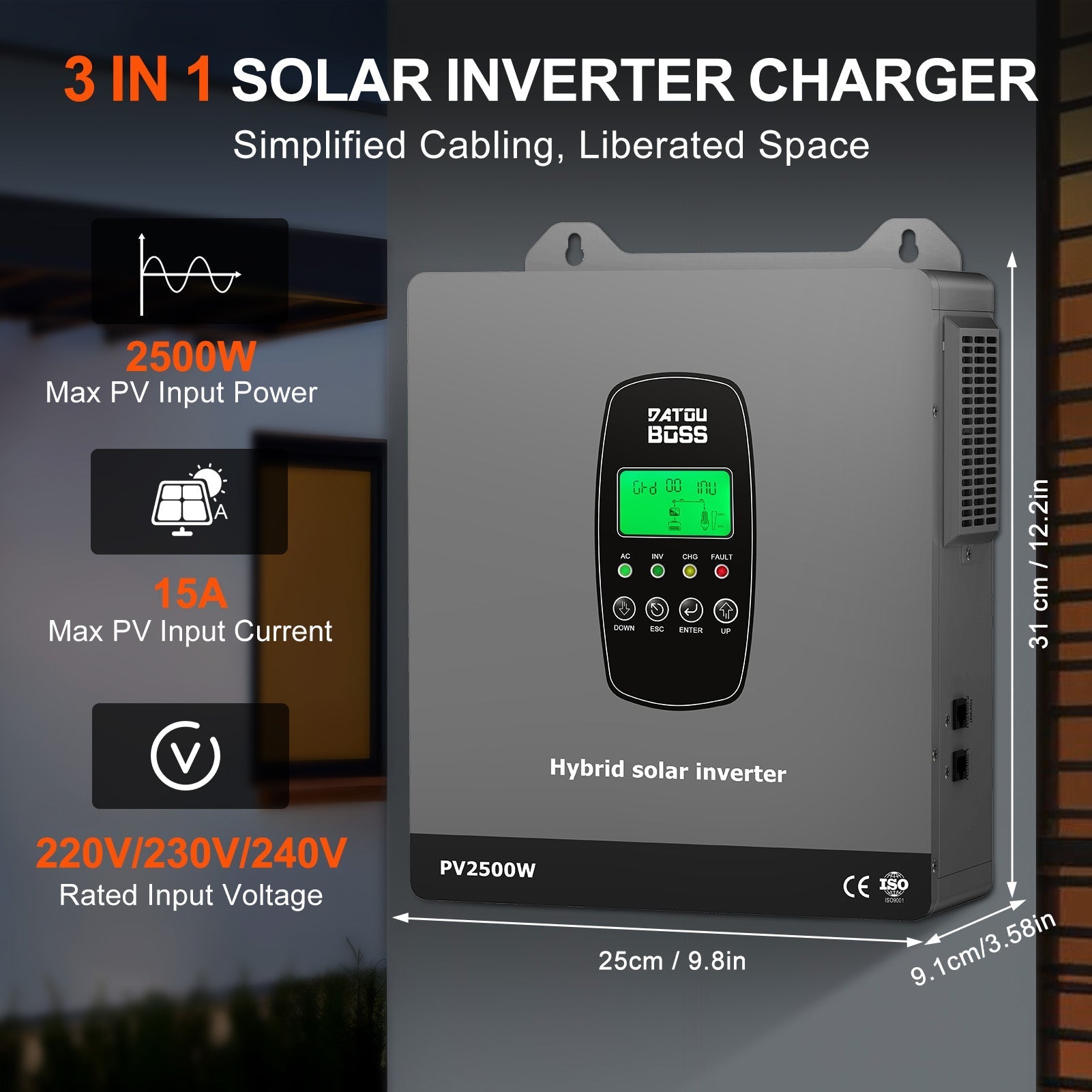

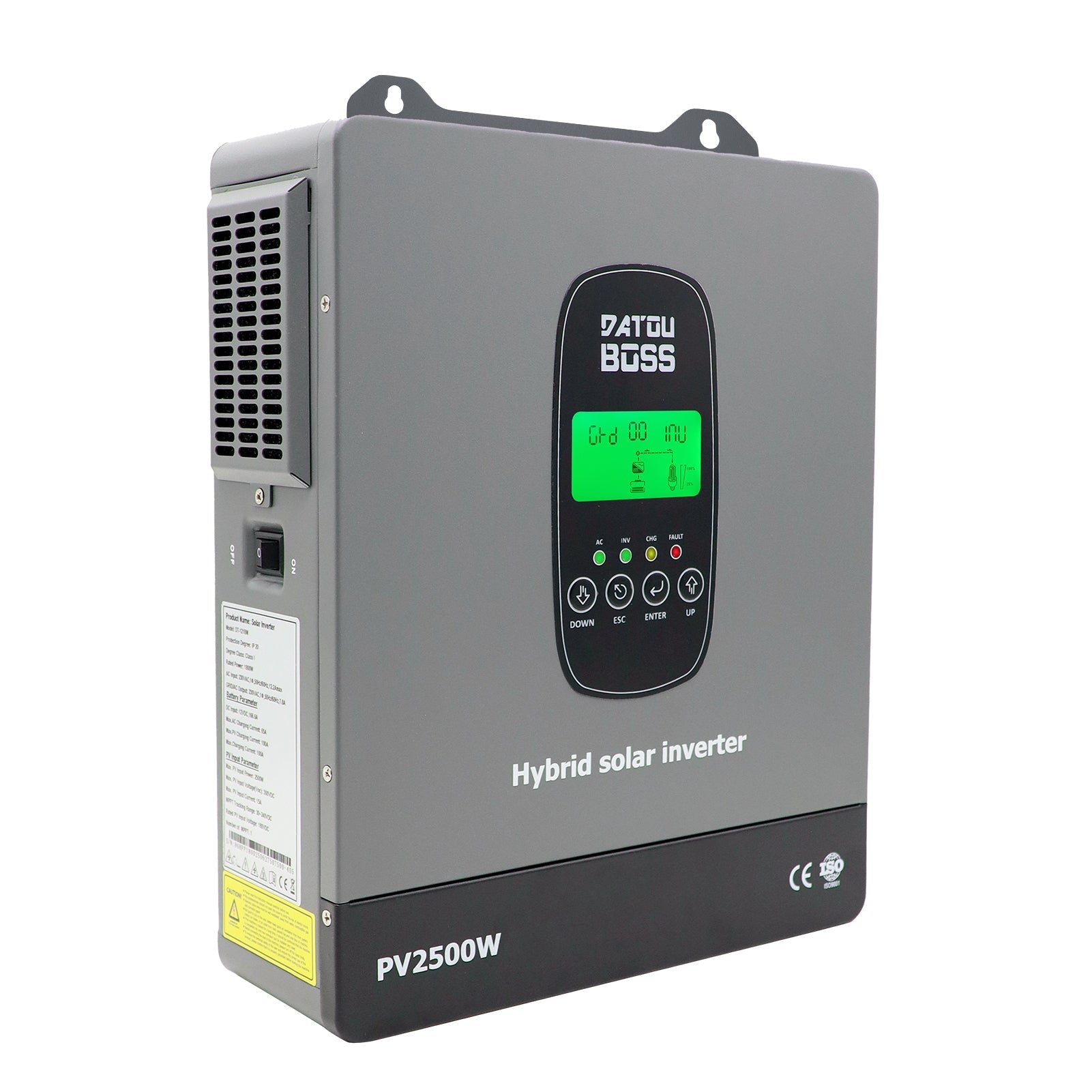

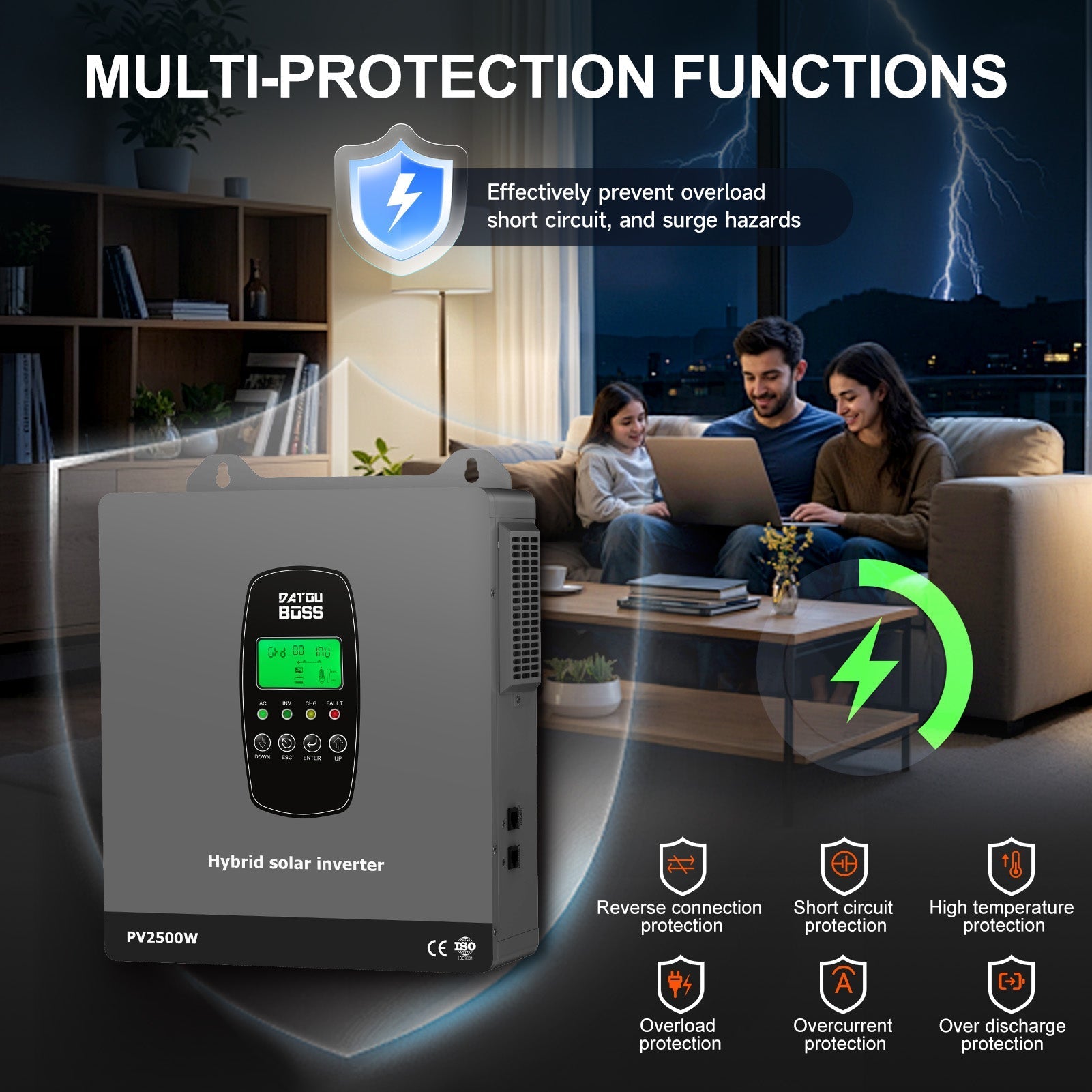

DATOUBOSS 1800W Hybrid-Wechselrichter 12V, Hybrid-Solar-Wechselrichter für netzgekoppelten Betrieb, unterstützt batterielosen Betrieb, 12V DC auf 220/…
Angebotspreis
€140,95
Regulärer Preis
€271,53
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS 1800W Hybrid-Wechselrichter 12V, Hybrid-Solar-Wechselrichter für netzgekoppelten Betrieb, unterstützt batterielosen Betrieb, 12V DC auf 220/230V AC, BMS-Schutzsystem, mit 150A MPPT für 12V-Batterien
Angebotspreis
€140,95
Regulärer Preis
€271,53

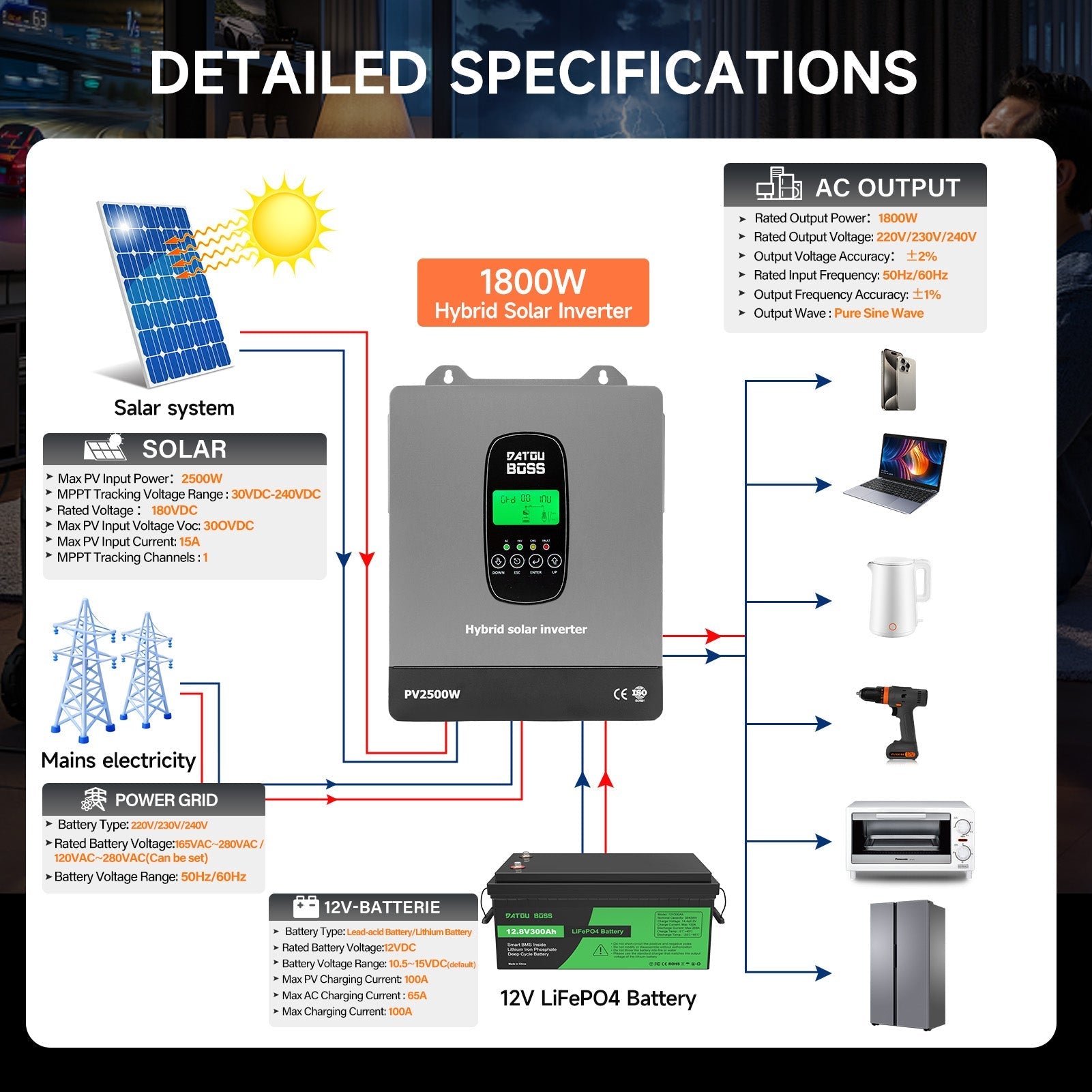

| Category | Details |
|---|---|

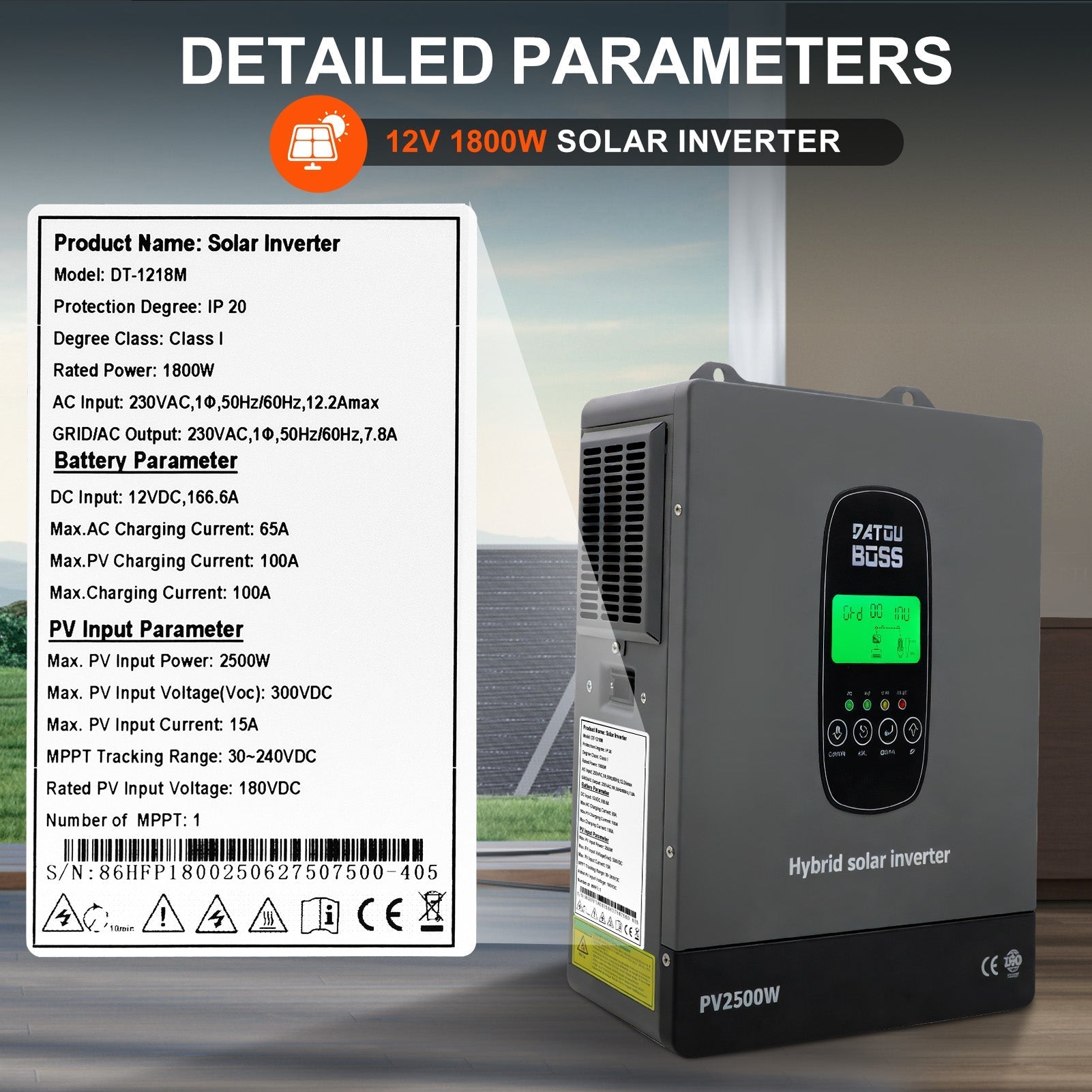

| Product Model | DT-1218M |
| Max PV Input Power | 2500 W |
| MPPT Tracking Voltage Range | 30VDC - 240VDC |
| Rated Input Voltage | 180 VDC |
| Max PV Input Voltage (Voc) | 300 VDC (at low temperature) |
| Max PV Input Current | 15 A |
| MPPT Tracker Count | 1 |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) / Lithium / Custom (set via panel) |
| Rated Battery Voltage | 12 VDC |
| Battery Voltage Range | 10.5 - 15 VDC (default) |
| Max PV Charging Current | 100 A |
| Max AC Charging Current | 65 A |
| Total Max Charging Current | 100 A |

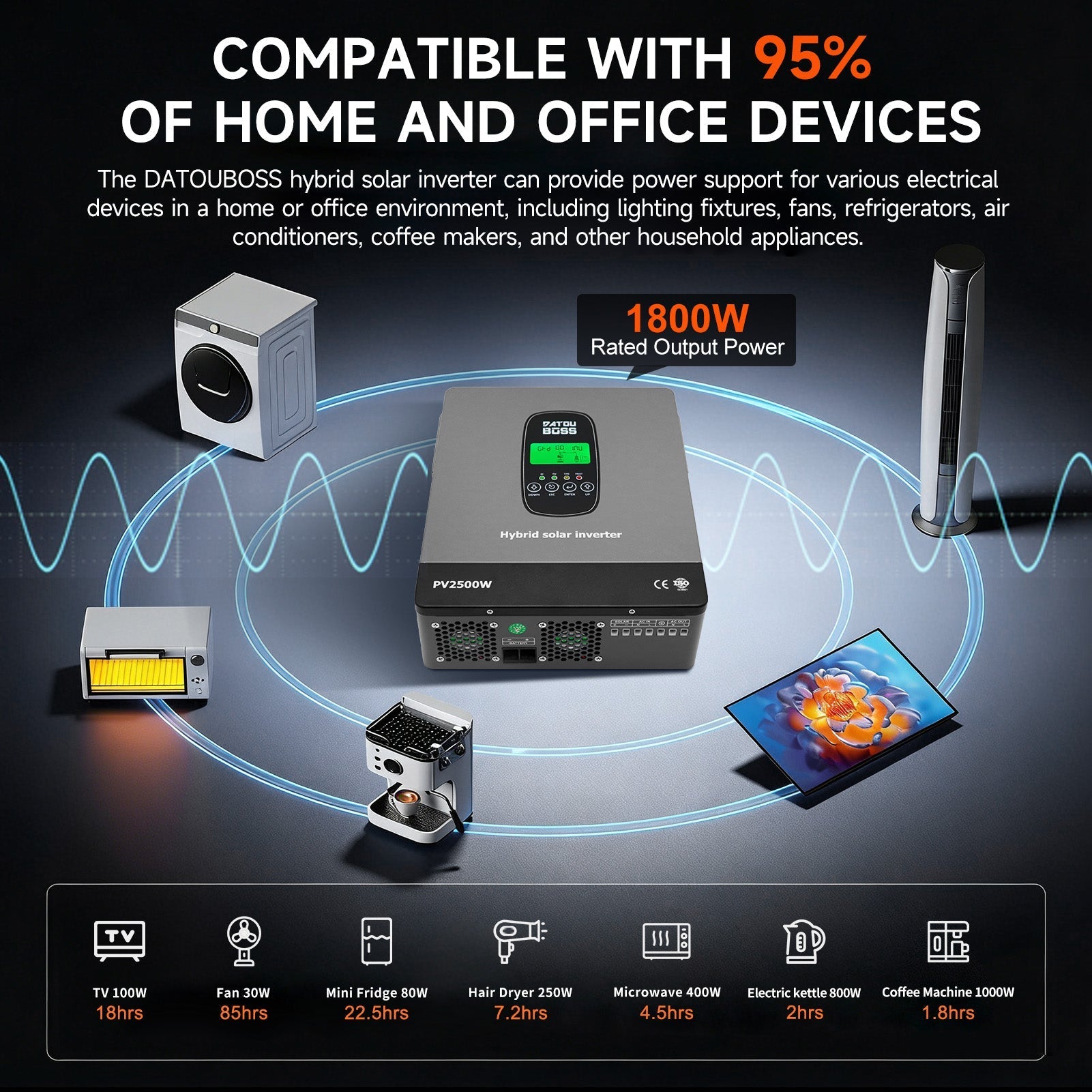

| Rated Output Power | 1800 W |
| Rated Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 187 - 264 VAC |
| Rated Output Frequency | 50/60 Hz |
| Frequency Range (50Hz) | 47 - 52 Hz |
| Frequency Range (60Hz) | 57 - 62 Hz |
| Rated Output Current | 8.1 A / 7.8 A / 7.5 A |
| Power Factor | > 0.98 (at rated power) |
| AC Input | 220/230/240 VAC |
| AC Input Voltage Range | 165 - 280 VAC (settable) |
| AC Input Frequency Range | 50Hz: 45 - 55 Hz, 60Hz: 55 - 65 Hz |
| AC Output | 1800 W |
| AC Output Voltage | 220/230/240 VAC |
| Output Voltage Accuracy | ±2% |
| Rated Output Frequency | 50/60 Hz |
| Output Frequency Accuracy | ±1% |
| Output Waveform | Sine Wave |
| Max Conversion Efficiency (Battery Discharge) | 94% (peak) |
| MPPT Tracking Efficiency | ≥99.9% |
| Conversion Time | 10 ms (typical) |

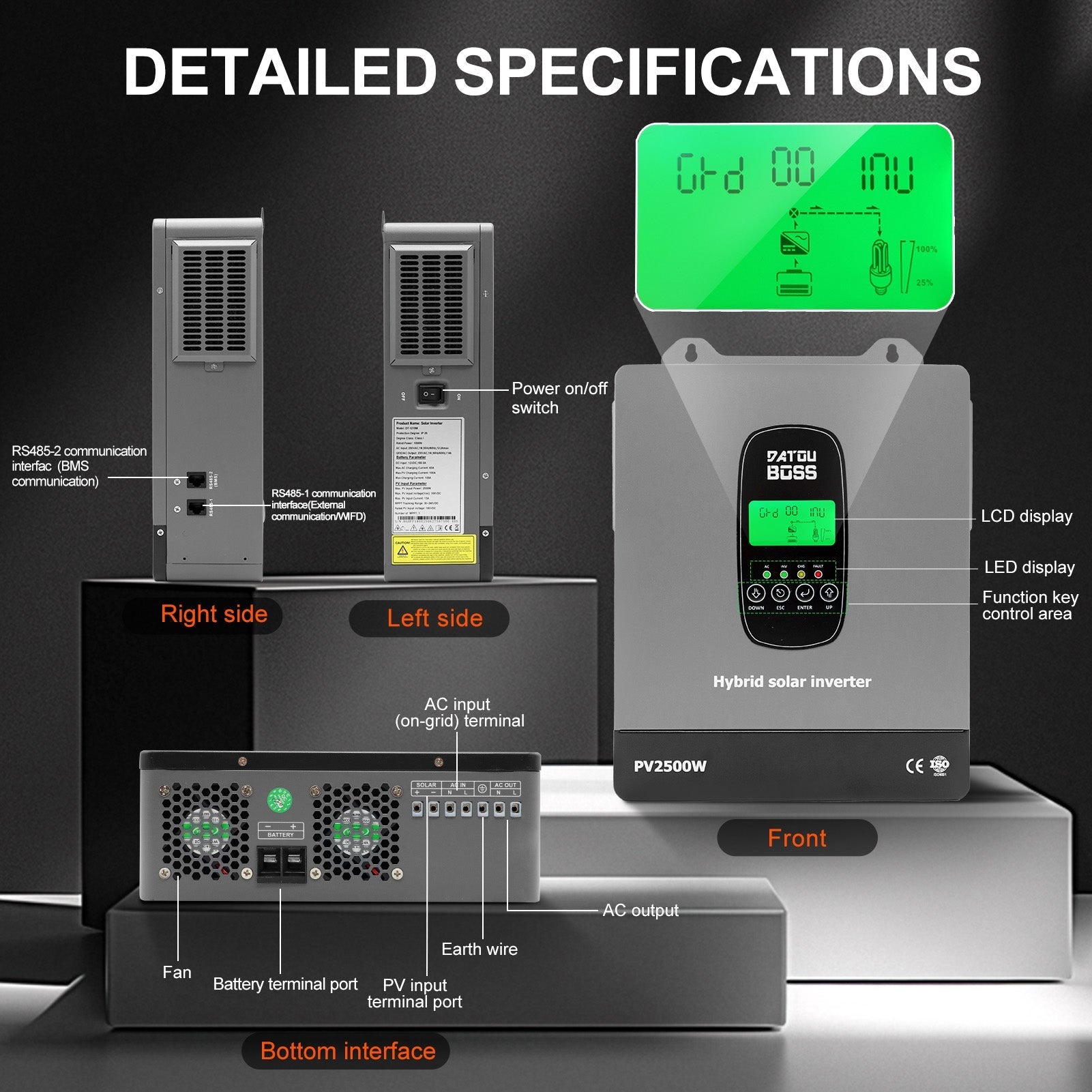

| Display Type | LCD + LED |
| Cooling Method | Intelligent Fan Control |

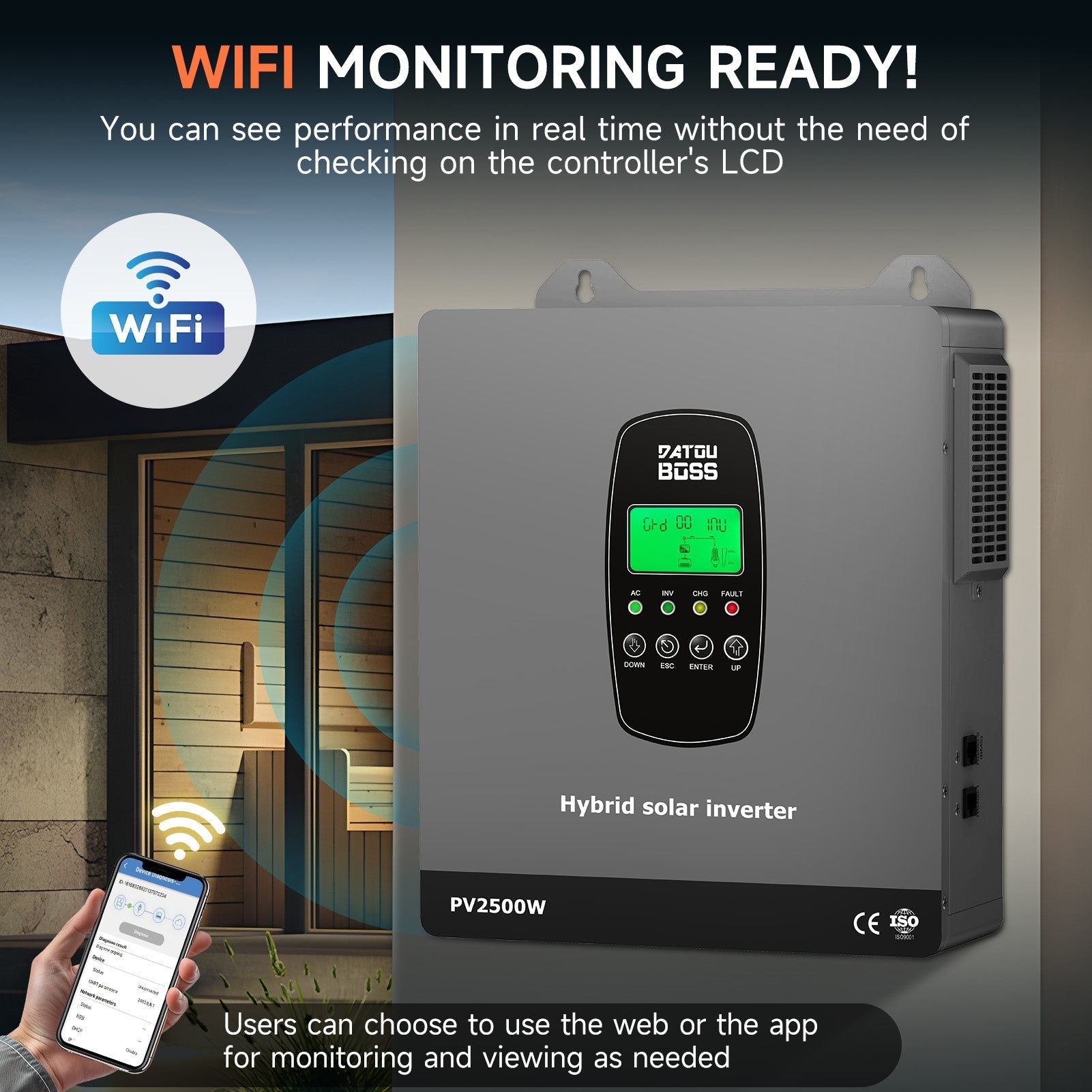

| Communication Function | RS485 / Mobile APP (WIFI optional) |
| Protection Level | IP20 |
| Installation Method | Wall-mounted |
| Battery Undervoltage Alarm | 11 VDC (default) |
| Battery Undervoltage Protection | 10.5 VDC (default) |
| Anti-Islanding Protection | ≤ 2 seconds |
| Overload Protection | Auto protection (battery mode) / Circuit breaker or fuse (grid mode) |
| Output Short Circuit Protection | Auto protection (battery mode) / Circuit breaker or fuse (grid mode) |
| Overtemperature Protection | >90°C (inverter and charging shutdown) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Noise | ≤ 55 dB |
| Altitude | ≤ 2000 m (derating required above this height) |
| Relative Humidity | 0% – 95%, non-condensing |
| Product Dimensions (L × W × H) | 310 × 250 × 91 mm |
| Package Dimensions (L × W × H) | 385 × 305 × 156 mm |
| Net Weight | 4.0 kg |
| Gross Weight | 5.0 kg |
