DATOUBOSS 11KW Hybrid-Wechselrichter 48V, Hybrid-Solarwechselrichter für netzgekoppelte Systeme, unterstützt batterielosen Betrieb, 48V DC auf 220/230…
Angebotspreis
€489,95
Regulärer Preis
€935,28
Order within the next hours minutes to receive it. Estimated delivery is between and
Abholverfügbarkeit konnte nicht geladen werden
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS 11KW Hybrid-Wechselrichter 48V, Hybrid-Solarwechselrichter für netzgekoppelte Systeme, unterstützt batterielosen Betrieb, 48V DC auf 220/230V AC, BMS-Schutzsystem, mit 150A MPPT für 48V, 27A PV-Eingang, mit Blitzschutz (kompatibel mit WiFi 04)
Angebotspreis
€489,95
Regulärer Preis
€935,28
| Category | Details |
|---|---|
| Product Model | DT4811B-5048MH |
| Rated Power | 5000W |
| Peak Power | 10000VA |
| Output Waveform | Pure Sine Wave |
| Nominal Input Voltage | 220/230/240VAC |
| Input Voltage Range (APL Mode) | 90 ~ 280VAC ±3V |
| Input Voltage Range (UPS Mode) | 170 ~ 280VAC ±3V |
| Input Frequency | 50/60Hz (Auto Adaptive) |
| Output Voltage | 220/230/240VAC ±5% |
| Output Frequency | 50/60Hz ±0.1% |
| Transfer Time (UPS Mode) | 10ms typical |
| Transfer Time (APL Mode) | 20ms typical |
| Peak Efficiency (Battery Mode) | >94% |
| Nominal Battery Voltage | 48Vdc |
| Battery Type | Lead Acid or Lithium |
| Constant Charging Voltage | 56.4Vdc (Adjustable) |
| Float Charging Voltage | 54Vdc (Adjustable) |
| Low DC Cut-off Voltage | 40 ~ 48Vdc (Adjustable) |
| PV Charging Mode | MPPT |
| Max PV Input Power | 5000W |
| Max PV Input Voltage | 500Vdc |
| MPPT Voltage Range | 80 ~ 500Vdc |
| Max PV Charging Current | 100A |
| MPPT Tracking Efficiency | 99.9% |
| Max AC Charging Current | 100A (Adjustable) |
| Max Total Charging Current | 120A |

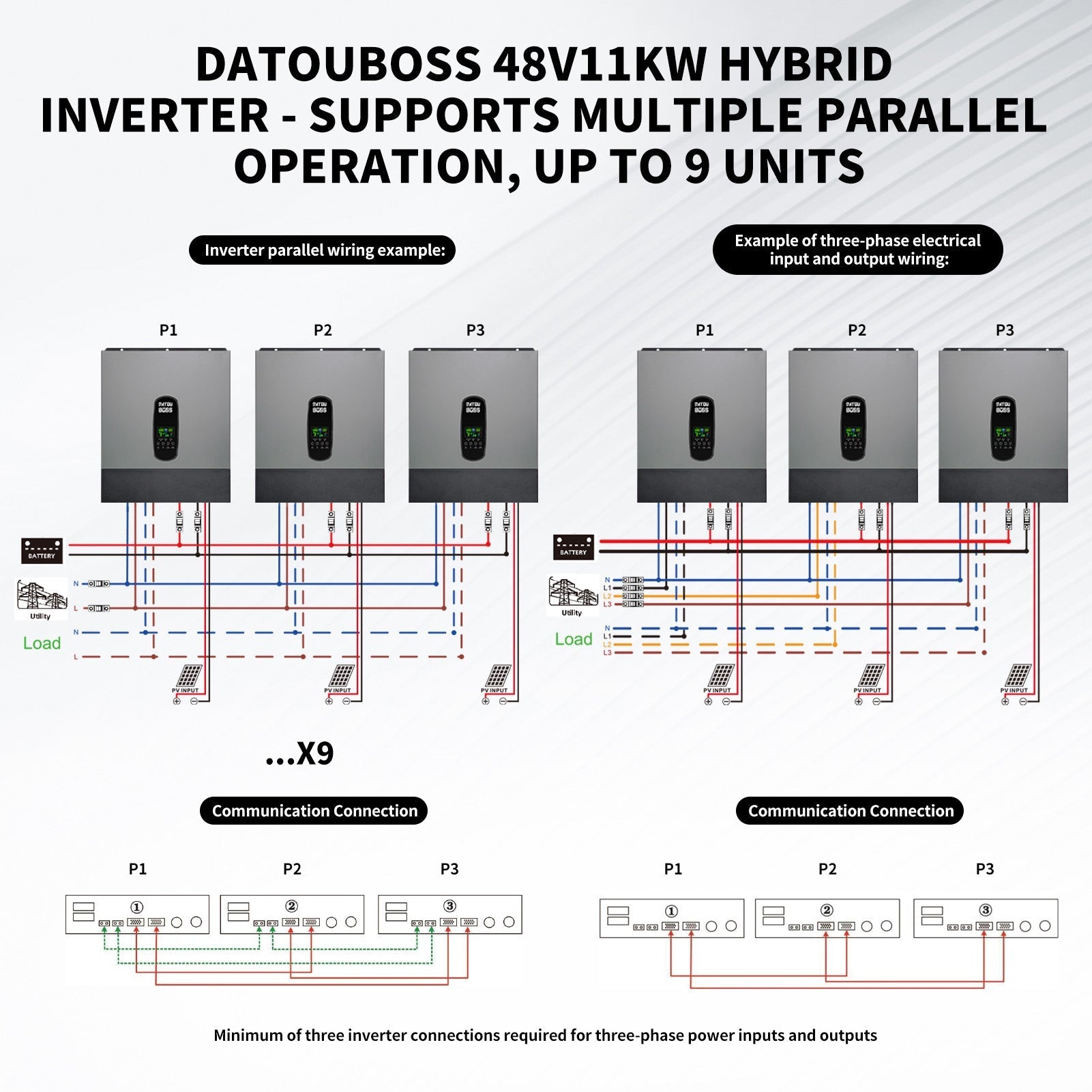

| Parallel Operation (Single Phase) | 2 ~ 9 units |
| 3-Phase Support | Yes (min. 3 units, max. 9 units) |
| Parallel Communication | Via dedicated parallel ports |

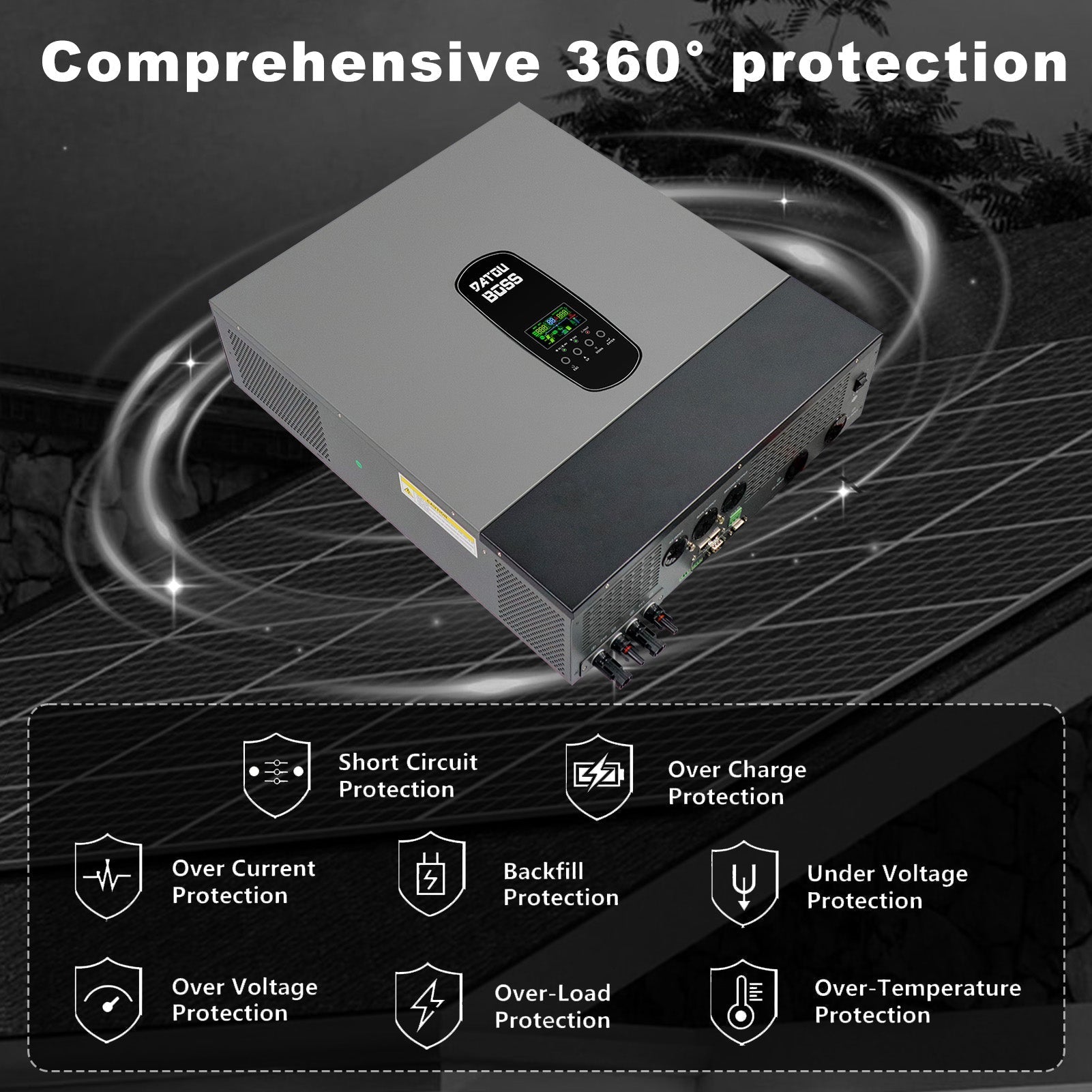

| Protections | Overload, Over temp, Short circuit, Battery over charge/discharge, Fan lock |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -15°C ~ 60°C (5°F ~ 140°F) |
| Humidity | 20% ~ 95% (Non-condensing) |
| Altitude | ≤1000m (derating above 1000m, max 4000m) |
| Noise Level | ≤50dB |

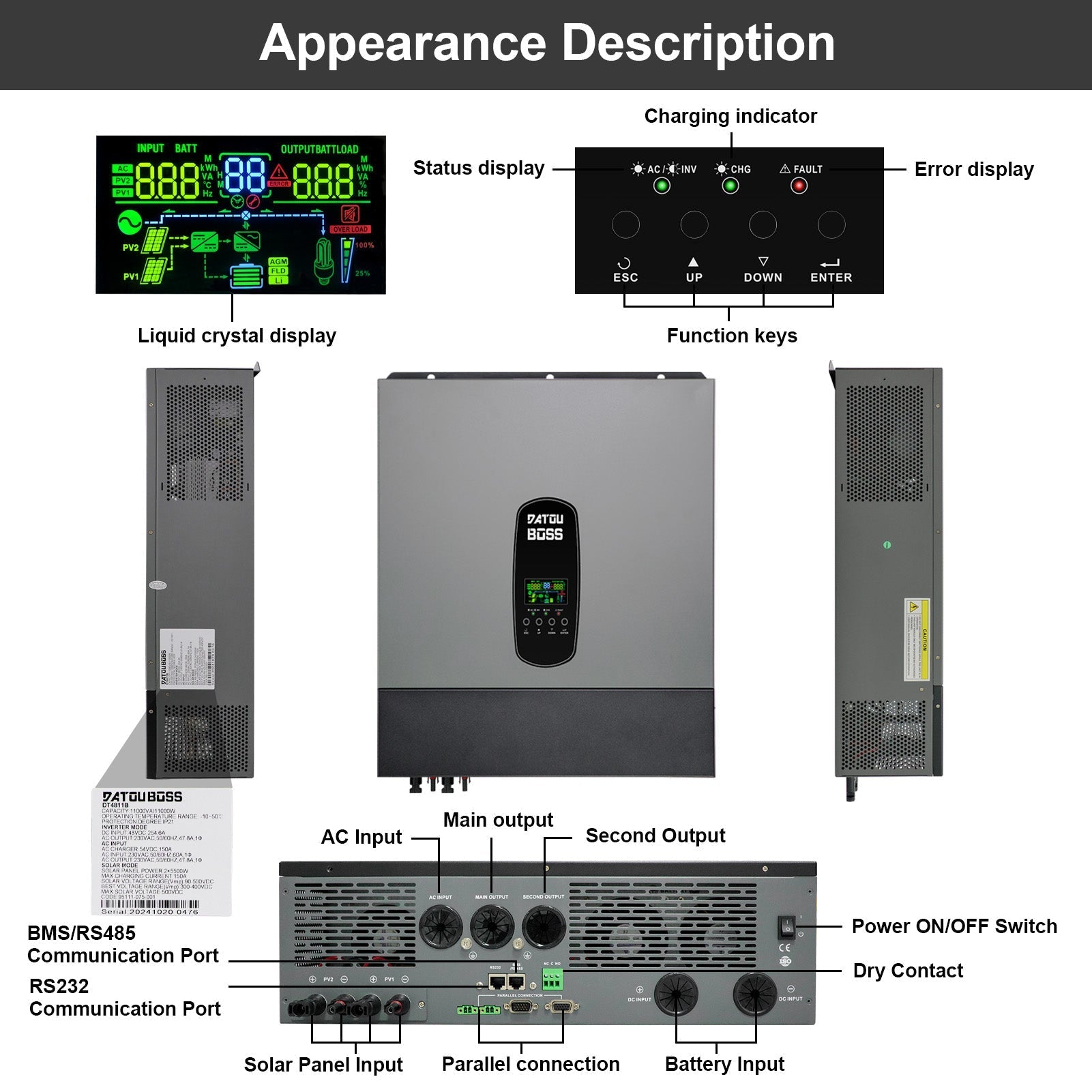

| Display | LCD (Input/Output voltage, frequency, load %, fault codes, etc.) |
| Communication Interfaces | RS232, RS485, BMS, Dry Contact, Parallel port, Optional WiFi card |
