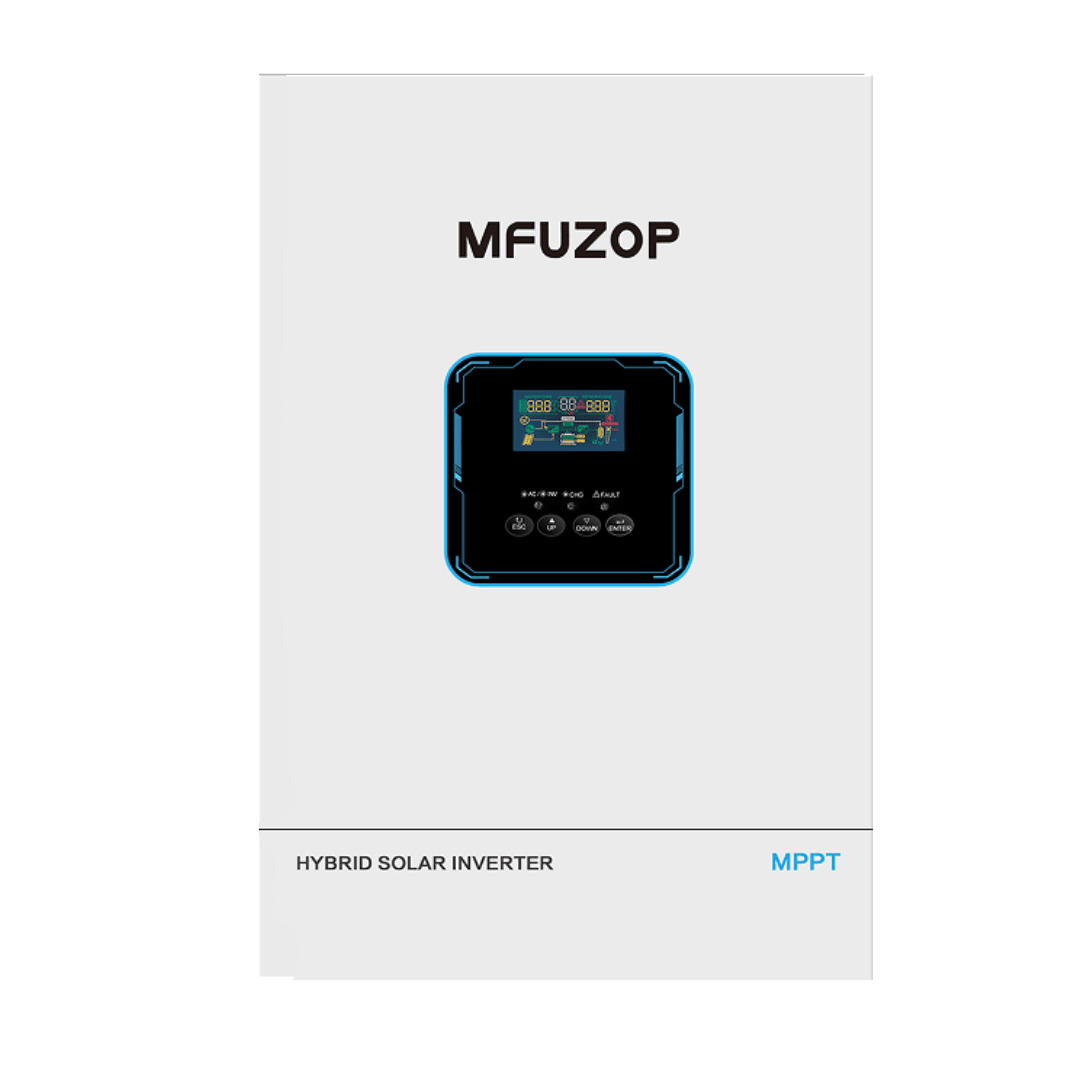

Name: MFUZOP Hybrid Inverter 5500W, 48V to 110V, 120A, MPPT, Off-grid, 50Hz/60Hz, for Solar Power
Brand: MFUZOP
SKU: SP-MF-4855U-A-US
Price: 392.00 USD
Availability: InStock

MFUZOP Hybrid Inverter 5500W, 48V to 110V, 120A, MPPT, Off-grid, 50Hz/60Hz, for Solar Power

Product Certifications

CE Certified UN38.3 Certified UL Certified ...More

MFUZOP Hybrid Inverter 5500W, 48V to 110V, 120A, MPPT, Off-grid, 50Hz/60Hz, for Solar Power

$392.00 $550.00

High-power pure sine wave output, reliably driving various loads: Compatible with 110/120V US grid standards, stably driving various household and motor loads.
100A MPPT high-efficiency charging, flexible switching between multiple power sources: Maximum photovoltaic input power 8500W, MPPT tracking range 60-500Vdc, three charging power sources: solar, mains power, and generator. Four adjustable charging modes are available.

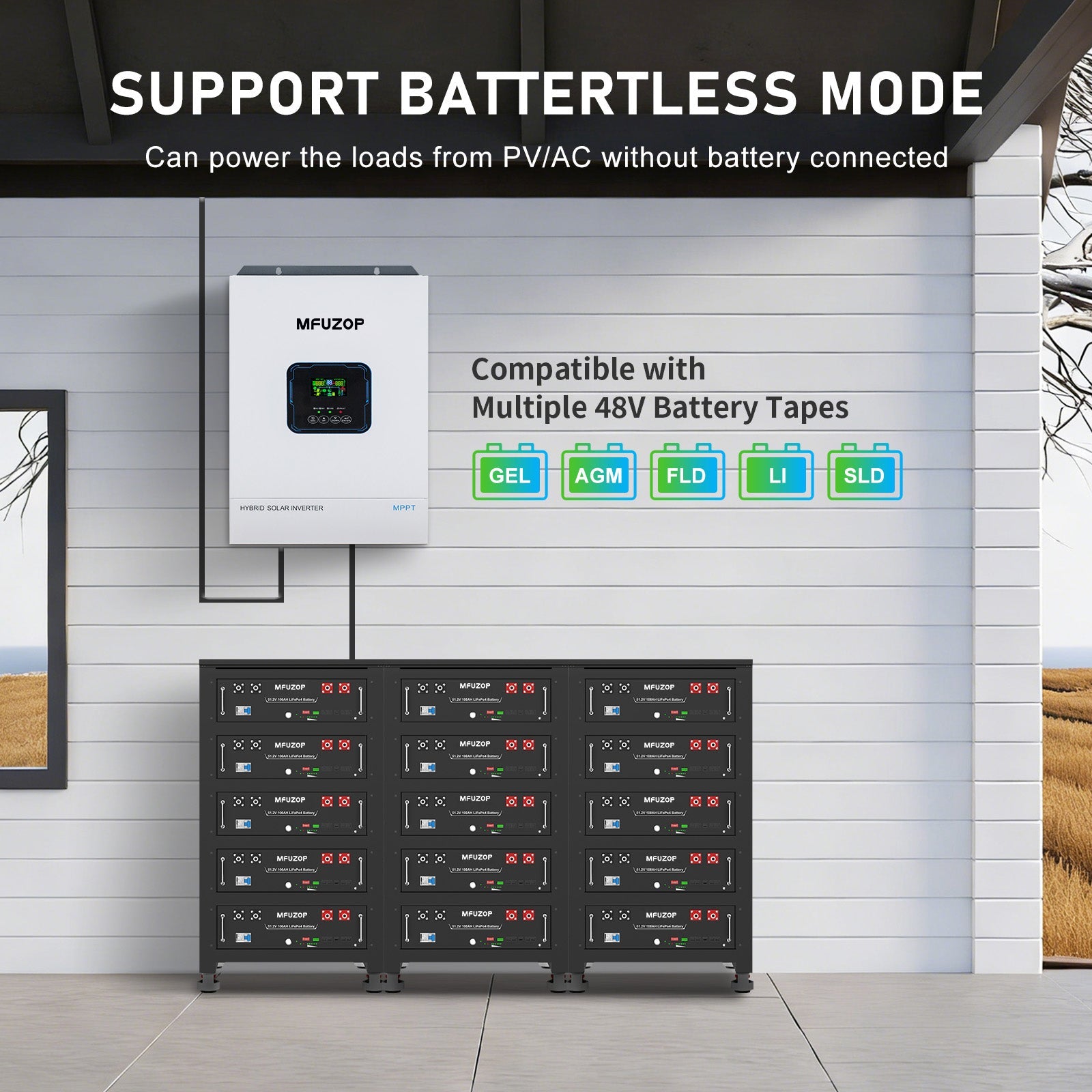

Fully compatible with various battery types + intelligent BMS: Compatible with AGM, gel, flooded lead-acid batteries, and various lithium batteries, supporting BMS communication and lithium battery activation.
LCD intelligent visual monitoring: Real-time display of photovoltaic voltage, battery level, load power, and other core data. It supports custom settings for more than 20 parameters.
Suitable for various installation environments: Featuring a vertical wall-mount design, it is suitable for installation on non-combustible surfaces and can operate stably in ambient temperatures ranging from 68-95℉ (20-35℃). It has cold start and automatic restart functions, complies with US standard wiring specifications, and is suitable for complex environments such as garages, RV parks, and boats.

Quantity

5-Year Warranty
30-Day Returns
Secure Payment

You May Also Need

MFUZOP Hybrid Inverter 5500W, 48V to 110V, 120A, MPPT, Off-grid, 50Hz/60Hz, for Solar Power

$392.00 $550.00

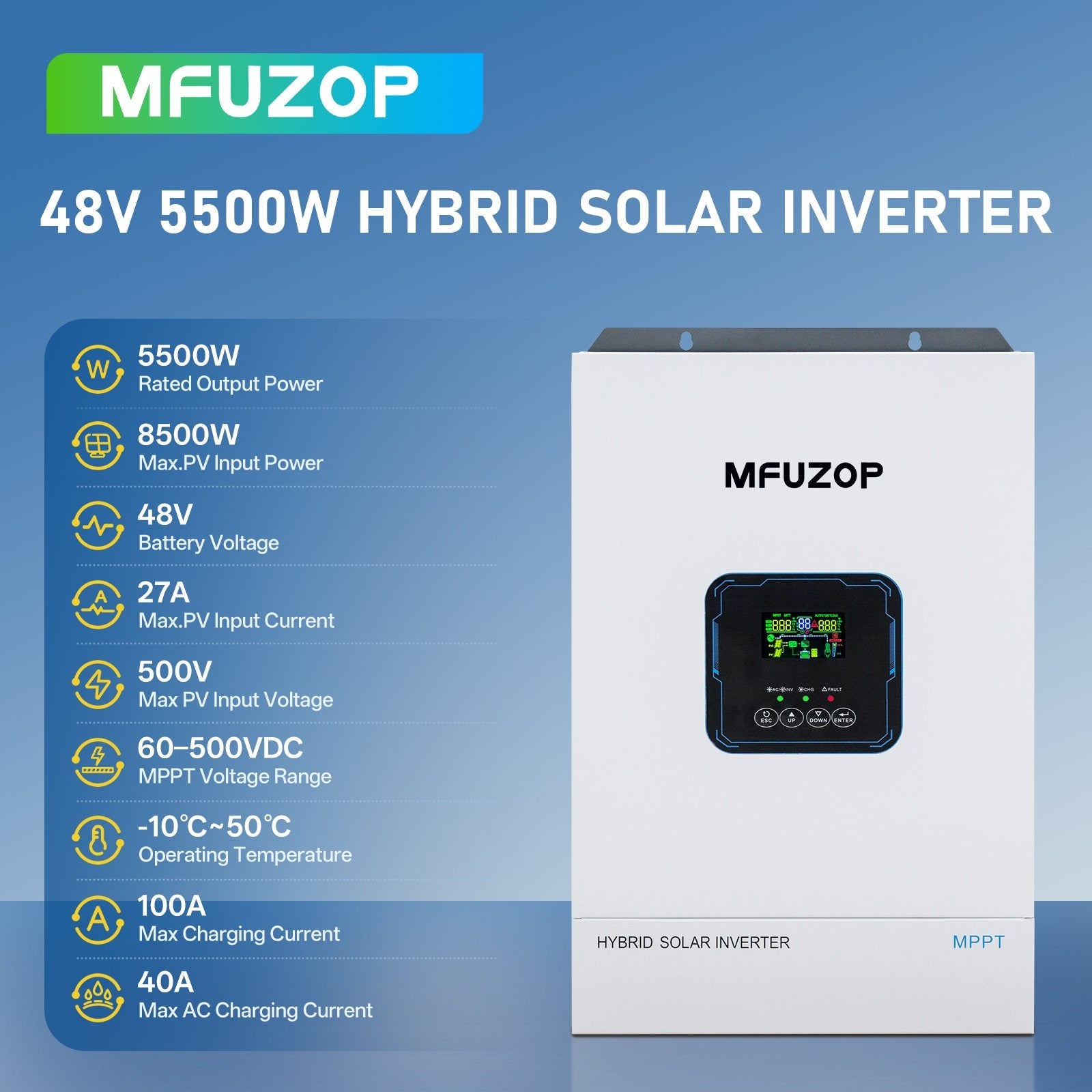

Parameter	Value
Product Model	4855U (Hybrid Inverter)
INPUT SPECIFICATIONS
Input Sources	L+N+PE
Rated Input Voltage	110 / 120VAC
Voltage Range	65–145VAC ±3V
Frequency	50/60Hz ±0.1%
OUTPUT SPECIFICATIONS
Rated Output Power (PV / Battery)	5500W
Output Voltage	110 / 120VAC ±5%
Output Frequency	50/60Hz ±0.1%
Waveform	Pure Sine Wave
Transfer Time (adjustable)	UPS Mode 10ms / APL Mode 20ms
Peak Power	11000VA
Overload Capacity (Battery Mode)	11s @ 105%~150% Load; 2s @ 150%~200% Load; 400ms @ >200% Load
GRID-TIED OPERATION
Grid-connected Output Voltage	110 / 120VAC
Feed-in Voltage Range	90–140VAC
Feed-in Frequency Range	47–53±1Hz / 57–62±1Hz
Nominal Output Current (Feed-in)	50A
Power Factor Range	>0.99
Max. Conversion Efficiency (DC/AC)	98%
BATTERY
Battery Voltage	48Vdc
Constant Charging Voltage (adjustable)	56.4Vdc
Float Charging Voltage (adjustable)	54Vdc
CHARGERS (PV & AC)
PV Charging Mode	MPPT
Max. PV Input Power	8500W
MPPT Tracking Range	60–500Vdc
Best MPPT Voltage Range	360–430Vdc
Max. PV Input Voltage	500Vdc
PV Max Input Current	27A
Max. PV Charging Current	100A
Max. AC Charging Current	40A
Total Max. Charging Current	100A

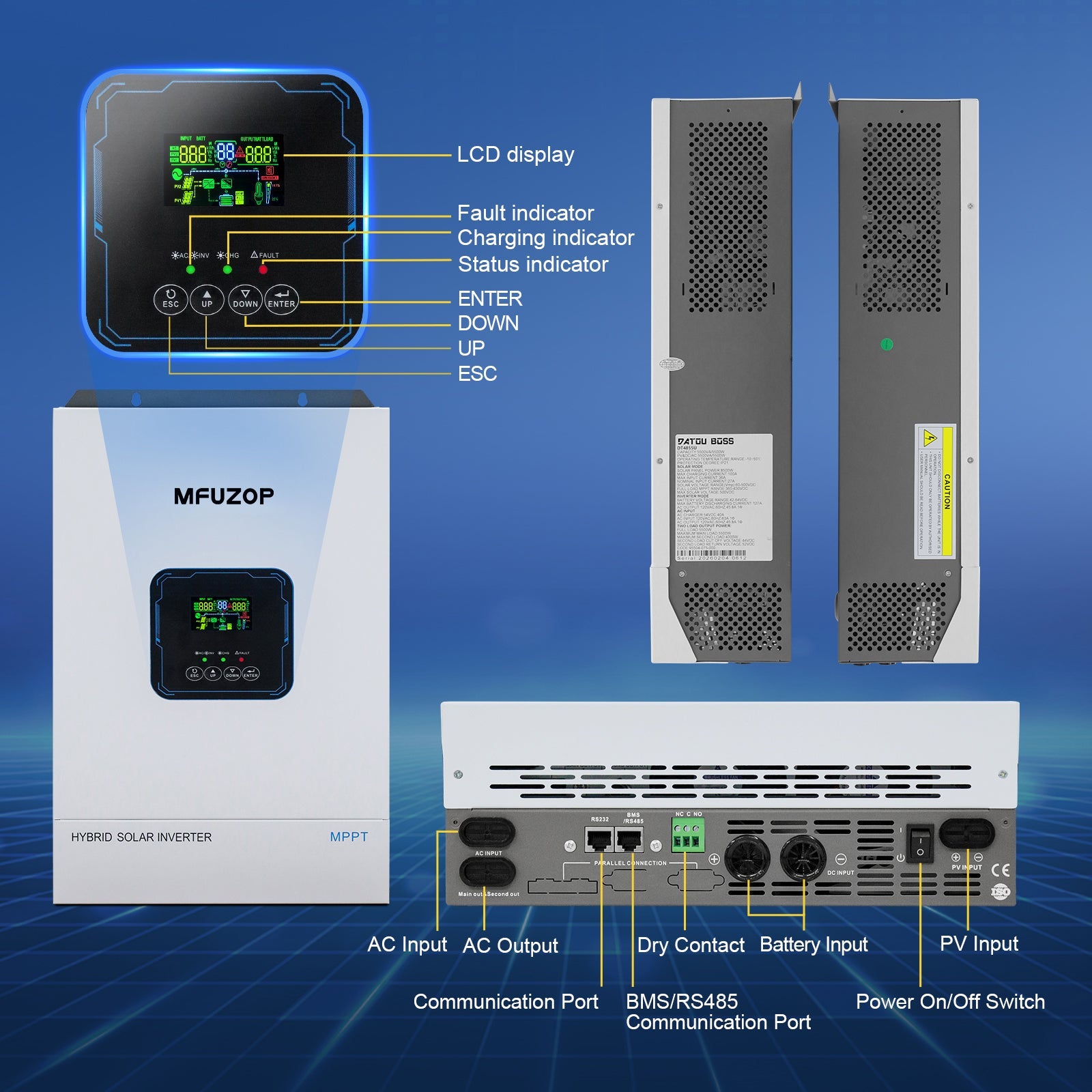

DISPLAY & INTERFACE
LCD Interface	CAN display (mode/load/input/output)
RS232	Baud Rate 2400
Expansion Options	Li-ion BMS card, WiFi card, Dry Contact
Parallel Operation	Not supported (without parallel connect)
ENVIRONMENTAL & MECHANICAL
Operating Temperature	-10°C ~ +50°C
Humidity	20% ~ 95% (non-condensing)
Storage Temperature	-15°C ~ +60°C
Altitude	≤1000m full load; derating 1000m–4000m (IEC62040)
Noise	≤50 dB
STANDARDS & CERTIFICATIONS
Safety Standards	EN-IEC 60335-1, EN IEC 60335-2-29, IEC 62109-1
