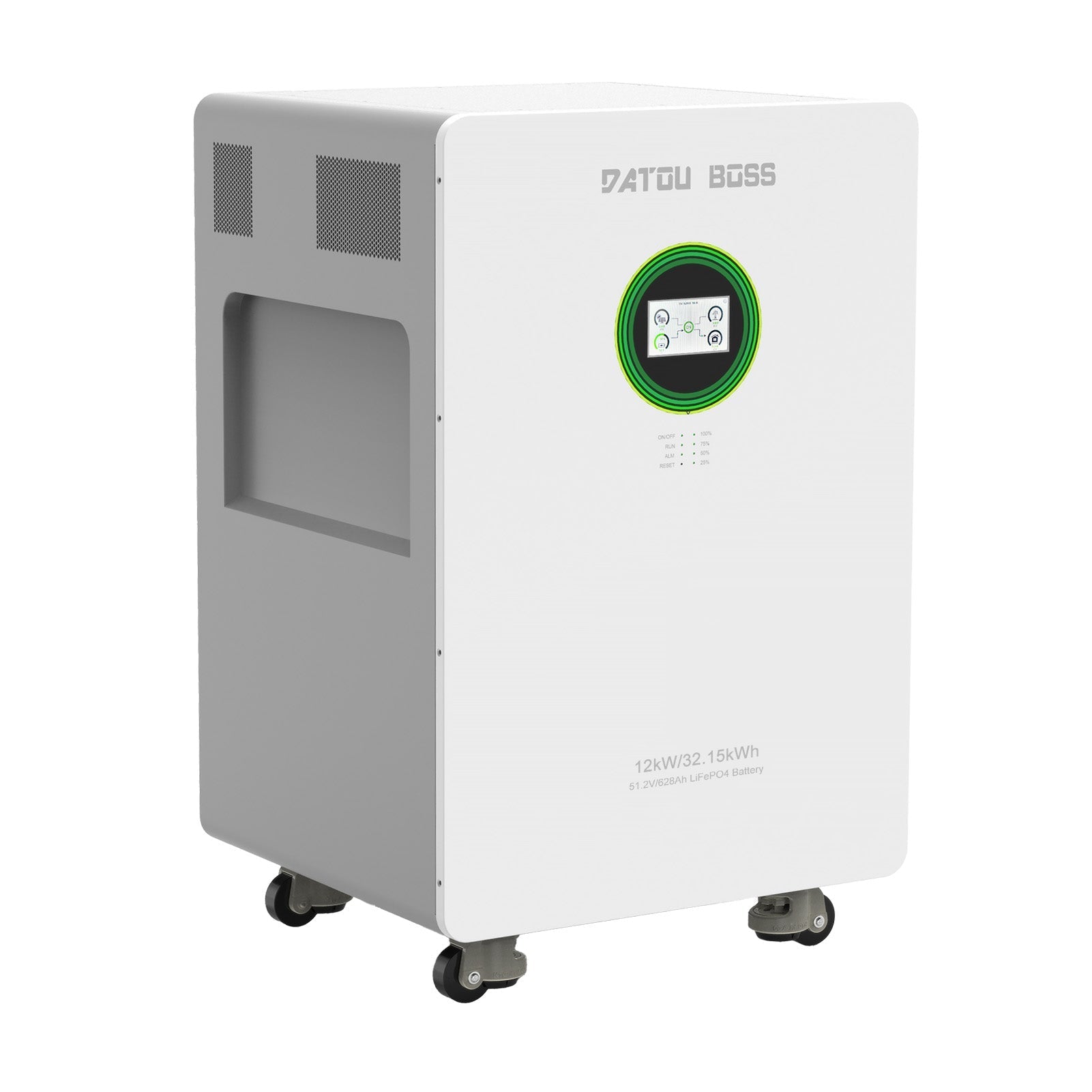

DATOUBOSS AIO System, 48V 12000W Hybrid Inverter + 628Ah LiFePO4 Battery for solar energy storage
Sale price
€2.985,00
Regular price
€7.542,89
Order within the next hours minutes to receive it. Estimated delivery is between and
Couldn't load pickup availability
-
5-Year Warranty
-
30-Day Returns
-
Free Shipping
You May Also Need
DATOUBOSS AIO System, 48V 12000W Hybrid Inverter + 628Ah LiFePO4 Battery for solar energy storage
Sale price
€2.985,00
Regular price
€7.542,89
| Category | Details |
|---|---|
| Product Model | JC-1232 |
| Product Type | All-In-One Home Energy Storage |
| Inverter Type | Off-grid |
| Core Integration Configuration | 12kW Inverter + LiFePO4 Energy Storage Battery |
| Protection Level | IP20 |
| User Interface | LCD Display + LED Status Indicator |
| Core Communication Protocol | CAN, RS485 |
| Battery Type | LiFePO4 |
| Balancing Method | Passive Balancing |
| Self-Discharge Current | ≤300μA |
| Cycle Life (25°C, 0.5C charge/discharge) | ≥8000 cycles, 70% SOH remaining at end of life |
| Input Format | L + N + PE |
| Rated Input Voltage | 220/230/240 VAC |
| Input Voltage Range | 170~280 VAC |
| Frequency Range | 50/60 Hz |
| Rated Output Power | 12000 W |
| Peak Power | 24 KVA |
| Output Voltage | 220/230/240 VAC |
| Output Frequency | 50/60 Hz ± 0.1% |
| Output Waveform | Sine Wave |
| Inverter Conversion Efficiency | 94% |
| Switching Time | UPS Mode: 10ms, Generator Mode: 20ms |
| Standby Power Consumption | ≤50 W |
| MPPT Tracker Count | 2 Tracks |
| Max PV Open Circuit Voltage | 500 Vdc |
| MPPT Operating Voltage Range | 60~450 Vdc |
| MPPT Tracking Efficiency | 99.9% |
| Max MPPT Charging Power | Single PV Input: 27A/9000W, Dual PV Input: 22.5A * 2/15000W |
| Max PV Input Current | 160 A |
| PV Charging Efficiency | 94% |
| Max Operating Altitude | 4000m (derating above 1000m) |
| Operating Humidity | 5%–95% (Non-condensing) |
| Communication Interface | RS485, CAN |
| User Interface | LCD Display |
